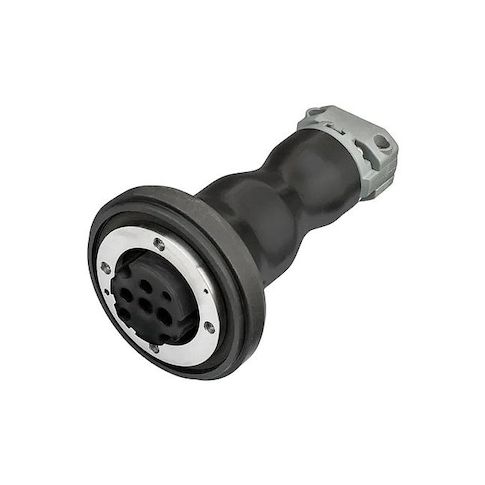

Pin & Sleeve Connector, 60 A, 208/480V AC, Single Phase, 2 Pole, IEC Grounding, NEMA 4X MPN:HBLBA3F
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G515482091
Pin & Sleeve Connector, 60 A, 208/480V AC, Single Phase, 2 Pole, IEC Grounding, NEMA 4X
The Pin & Sleeve Connector from HUbbell Wiring is a reliable and rugged solution for electrical connections in harsh environments. Suitable for 60A, 208/480V AC, single-phase applications, this connector features a 2-pole design with IEC grounding and a NEMA 4X rating for withstanding extreme conditions. Its chemical, impact, and UV-resistant properties ensure long-lasting performance, while its watertight seal protects against water and dust ingress. Ideal for use in outdoor or industrial settings, this connector is perfect for applications such as electrical panels, motor control centers, and power distribution systems, providing a secure and reliable connection in demanding situations.
Top product features:
- Current Rating 60 A
- Grounding Style IEC
- Chemical, Impact, UV/Sunlight, and Watertight Resistance Properties
Top product applications:
- Industrial Power Distribution
- Heavy-Duty Machinery Assembly
- Electrical Panel Installation
Pin and Sleeve Connector, Current Rating 60 A, Grounding Style IEC, Horsepower Rating 7 1/2 hp, Housing Color Black, IP Rating IP69K, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Watertight, Switch Rated Yes, Voltage Rating 208V AC, 250V AC, 480V AC, Cap Type No Cap or Cover, Connection Orientation Straight, Face Diameter 4.4 in, For Maximum Cable Diameter 1.25 in, For Minimum Cable Diameter 0.5 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 25.10
- Package Width: 11.80
- Package Height: 12.20
- Package Weight: 23.93
Product info last updated on February 3, 2026 3:45am UTC
Category: Wiring Devices
