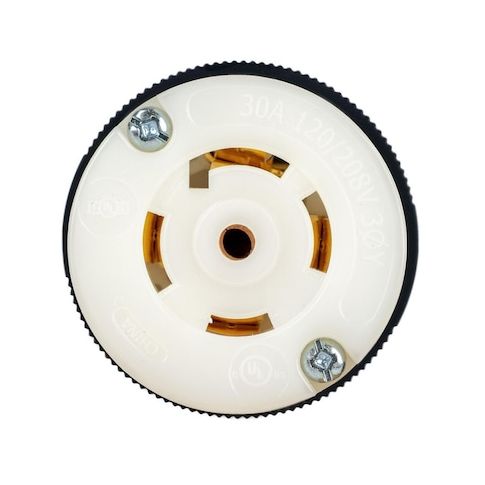

Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Spring Clamp Terminals MPN:HBL2813ST
Free Shipping
In Stock
The HUBBELL Locking Connector is a reliable and efficient solution for industrial indoor applications, featuring a three-phase, 30 A design for use in dry environments. Its EdgeConnect screwless termination system enables easy wire insertion and connection without the need for additional tools. This connector is ideal for use in a variety of settings, including power distribution systems, industrial machinery, and equipment installations. With its impact-resistant nylon housing and UL 94 HB flammability rating, it provides a safe and durable connection. Its compact design and low profile make it perfect for use in tight spaces and high-traffic areas.
Top product features:
- The HUBBELL Locking Connector is a three-phase, 30 A locking connector designed for industrial indoor use in dry environments.
- The connector features an EdgeConnect screwless termination system that enables wire insertion and connection via a plunger mechanism, requiring no additional tools.
- The connector accommodates wire sizes from 8 AWG to 16 AWG and uses spring clamp terminals for simplified electrical wiring termination.
Top product applications:
- Industrial Control Panels
- Three-phase power distribution systems
- High-power electrical equipment installations
The HUBBELL Locking Connector is a three-phase, 30 A locking connector designed for industrial indoor use in dry environments. Featuring the EdgeConnect™ screwless termination system, it enables wire insertion and connection via plunger mechanism
- no additional tools required. The connector accommodates wire sizes from 8 AWG to 16 AWG and uses spring clamp terminals for electrical wiring.
Key Features of the HUBBELL Locking Connector:
- NEMA Configuration: L21-30R
- Current Rating: 30 A
- Voltage Rating: 120/208V AC
- Phase: Three-phase operation
- Number of Poles/Wires: 4 poles, 5 wires
- Wire Connection Type: Spring clamp terminals with funnel-shaped entry for simplified termination
- No Tools Required: Screwless design does not require use of screwdriver or torque wrench during installation
- Cord Grip Design
- Housing Material: Impact-resistant nylon
- color black and white
- Operating Temperature Range: -40°C to 75°C
- UL 94 Flammability Rating: HB
- IP20 rated for indoor use only
- Standards Compliance: CSA C22.2 No.42, Federal Specification W-C-596, UL 498
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 2.40
- Package Height: 2.40
- Package Weight: 0.47
