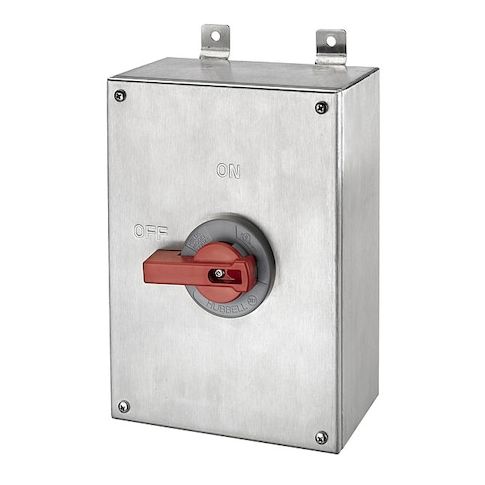

Nonfusible, Motor Disconnect Switch, Heavy Duty, 600 V, 3PST, NEMA 12K, 4, 4X MPN:HBLDS10SS

• The HUBBELL Nonfusible Enclosed Disconnect Switch is a 3-pole manual disconnect switch rated for 100 A and up to 600V AC. Rated for indoor and outdoor use per NEMA Type 12K, 4, and 4X

• IP54 ratings, it features a stainless steel enclosure with NEMA 12K, 4, and 4X ratings. This unit meets UL/CSA standards as a manual motor controller listed as a motor disconnect per UL/CSA standards
• certified for use as a motor disconnect per NEC section requirements.




  Key Features of the HUBBELL Nonfusible Enclosed Disconnect Switch:





  • Current Rating: Rated for up to 100 A at 600V AC


  • Pole Configuration: Three poles (3PST) with five wires


  • Enclosure Material: Enclosure material: 304 stainless steel


  • NEMA & IP Ratings: NEMA Type 12K, 4, and 4X
  • IP54 rated for indoor/outdoor use


  • Horsepower Capacity: Rated for motors up to 50 hp at 600V AC


  • Nonfusible Protection Method: Nonfusible disconnect switch


  • Conduit Openings: Includes two field-installed conduit hubs (1-1/4 in standard size)


  • Mounting Method: Fixed feet mounting design


  • Operating Temperature Range: -40°C minimum to +75°C maximum continuous operation without impact


  • Industry Standards: UL Listed
  • CSA certified as suitable for use as a motor disconnect per NEC section requirements
