Nonfusible, Motor Disconnect Switch, Heavy Duty, 600 V, 3PST MPN:HBLDS3SSAC
Free Shipping
In Stock

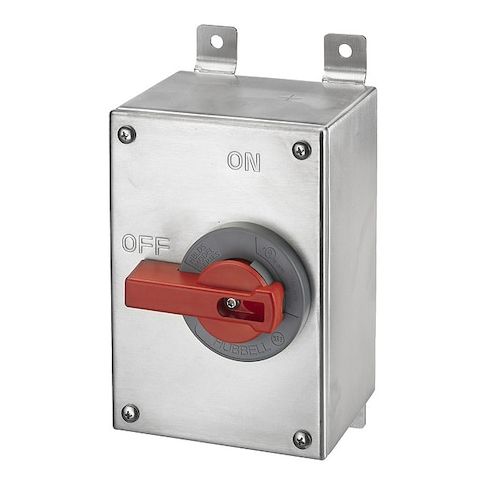

The HUBBELL Nonfusible Enclosed Disconnect Switch is a heavy-duty, 3-pole manual switch designed for indoor and outdoor use, suitable for disconnecting power within line of sight from motors or driven equipment. Rated for 30 amps at up to 600V AC, it provides a safe and reliable means of power disconnection. This switch is ideal for applications in harsh environments, such as industrial, commercial, and construction sites, and meets industry standards for electrical performance and flammability classification. Its nonfusible design and stainless steel housing ensure durability and longevity, making it a valuable asset for any facility or project.
Top product features:
- Provides a means of disconnecting power within line of sight from motors or driven equipment in accordance with NEC section 430.102(B)
- Rated for 30 amps at up to 600V AC across three poles
- Equipped with auxiliary contact and neutral assembly
Top product applications:
- Motor Disconnect Switch for Indoor and Outdoor Installation
- Motor Control Panel for Heavy Duty Applications
- Industrial Automation Systems for High Voltage Power Distribution
The HUBBELL Nonfusible Enclosed Disconnect Switch is a 3-pole manual switch rated for 30 A and up to 600V AC. Suitable for indoor and outdoor installation per manufacturer specifications, it provides a means of disconnecting power within line of sight from motors or driven equipment in accordance with NEC section 430.102(B). This unit is UL listed as a manual motor controller and may be used as a motor disconnect, per UL listing.
Key Features of the HUBBELL Nonfusible Enclosed Disconnect Switch:
- Current Rating: Rated for 30 amps at up to 600V AC across three poles
- Enclosure: Stainless steel housing with NEMA Type 12K, 4, and 4X ratings
- IP69K ingress protection for various environmental conditions
- Mounting Style: Surface mount with fixed stainless steel feet
- Horsepower Ratings: Rated for operation at: 20 hp @240V AC, 40 hp @480V AC, and 15 hp @600V AC
- Fusible / Nonfusible: Nonfusible design (no internal fuses)
- Contact Form: Three pole single throw (3PST) configuration
- AUX Contact & Neutral Assembly Included: Comes equipped with auxiliary contact and neutral assembly
- Resistance Properties: Constructed with materials rated for impact resistance and UV stabilization
- all components are UV stabilized
- Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous operation
- Standards Compliance: UL Listed
- CSA certified
- meets applicable industry standards for electrical performance and flammability classification (UL94-5VA/V0)
Additional Information
- Country of Origin: PL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.10
- Package Width: 7.70
- Package Height: 5.90
- Package Weight: 5.45
