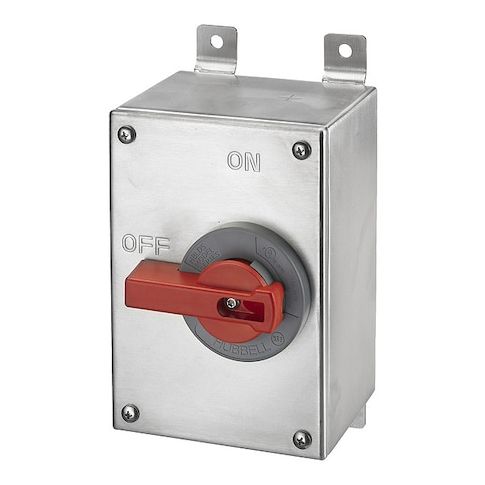

Nonfusible, Motor Disconnect Switch, Heavy Duty, 600 V, 3PST, NEMA 12K, 4, 4X MPN:HBLDS3SS

• The HUBBELL WIRING DEVICE-KELLEMS - HBLDS3SS is a Motor Disconnect Switch, a safety device used in industrial electrical systems. It serves to isolate and cut off power supply to motors, facilitating safe maintenance, repair, or replacement by preventing accidental startup. This switch is an integral part of broader electrical supplies and is utilized by industry professionals for efficient control and automation processes.




  • Amps: The switch has a current rating of 30 A, which is its maximum rated capacity.
  • Contact Form: With a 3PST contact form, this switch controls three circuits which could be normally open (NO) or closed (NC).
  • Duty: This disconnect switch is classified as heavy-duty and may be used in various applications including those considered challenging.
  • Enclosure Type: Its NEMA 4X enclosure type indicates that it meets certain standards related to resistance against elements such as dust, water corrosion and external ice formation.
  • Horsepower @ 240V AC/480V AC/600V AC: The safety disconnect switch is designed for operation at voltages of 240 Volts AC (20 hp), 480 Volts AC (40 hp), and 600 volts alternating current (15 hp).
  • Housing Material & Material: Constructed with stainless steel material known for its durability properties.
  • Mounting Method & Style: This Safety Disconnect Switch utilizes fixed feet for mounting. This method contributes towards maintaining position during surface mount style installation
  • Number of Poles/Wires: With three poles and five wires respectively
  • each pole represents an individual circuit while the wires indicate how many electrical connections can be made for power transmission and control circuits.
  • Protection Method: The switch employs a non-fusible protection method intended to mitigate risks associated with electrical overloads.
  • Standards: This Safety Disconnect Switch is compliant with UL/CSA standards, indicating it meets certain criteria for operation in industrial settings.
