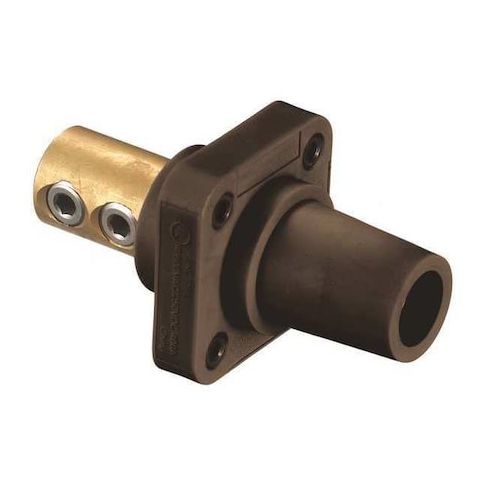

Receptacle, Brown, Female, Double Set Screw MPN:HBLFRBN
The HUBBELL Receptacle, Brown, Female, Double Set Screw is a reliable and versatile panel mount receptacle designed for use in heavy-duty applications requiring up to 400A at 600V AC or 250V DC. Its double set screw terminal connection and compatibility with Series 16 connectors make it an ideal choice for indoor dry locations. This receptacle is suitable for use in a variety of settings, including industrial, commercial, and residential applications, and meets ANSI/NFPA 70 (NEC), UL Listed, and cUL Listed requirements. Its durable construction and easy installation make it a great option for any electrical project.
Top product features:
- Accepts wire sizes from #4 AWG to 4/0 AWG conductors
- Rated for up to 400 A at 600V AC or 250V DC
- Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements
Top product applications:
- Electrical Panel Installation
- Industrial Control Panels
- Automotive Repair and Maintenance
The HUBBELL Receptacle, Brown, Female, Double Set Screw is a single pole panel mount receptacle rated for use in applications requiring up to 400 A at 600V AC or 250V DC. This female device features a double set screw terminal connection and is compatible with Series 16 connectors. It accommodates wire sizes from #4 AWG to 4/0 AWG and is intended for installation in indoor dry locations
- consult applicable codes and requirements if additional protection is needed.
Key Features of the HUBBELL Receptacle, Brown, Female, Double Set Screw:
- Amperage Rating: Rated for up to 400 A at 600V AC or 250V DC
- Cable Range: Accepts #4 AWG to 4/0 AWG conductors
- Terminal Connection Type: Double set screw termination
- Material: Housing made from thermoplastic elastomer
- contact material is brass
- NEMA Enclosure Ratings: Rated for NEMA Types 3R, 4X, and 12 environments
- Mounting Style: Panel mount with through hole mounting hardware (threaded thru-hole)
- Connection Orientation: Straight taper nose design
- fits Series 16 male connectors
- Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 2.50
- Package Height: 2.90
- Package Weight: 0.70
