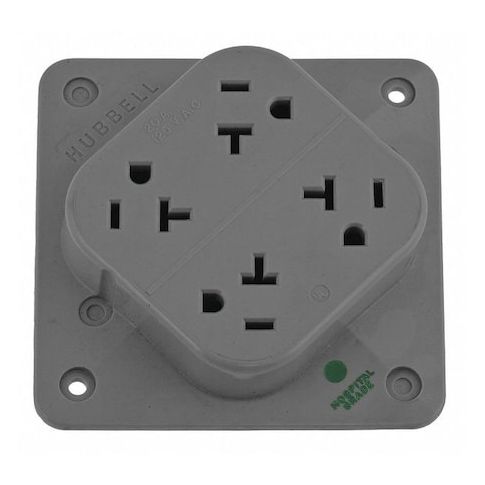

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:HBL420HGY
Out Of Stock
The HUBBELL 4-PLEX Receptacle is a versatile and reliable quad outlet solution ideal for high-traffic areas such as hospitals, offices, and commercial spaces. Its hospital-grade construction and grounding feature ensure safe and secure power distribution, meeting the demands of heavy use. The receptacle's impact-resistant polycarbonate housing and secure wire termination system provide long-lasting performance. Suitable for continuous use in temperatures ranging from -40°C to +75°C, this receptacle is perfect for applications where reliability and safety are paramount, including healthcare facilities, educational institutions, and high-density commercial spaces.
Top product features:
- Quad Outlet Configuration: Features four NEMA 5-20R outlets in a single device.
- Back Wired Screw Terminals: Supports #12 AWG copper stranded or solid conductor only with accessible break-off tabs for split circuit configuration.
- Grounded Design: Meets requirements for hospital grade use with a grounding feature included.
Top product applications:
- Commercial Office Buildings
- Hospital Rooms
- Industrial Workspaces
The HUBBELL 4-PLEX Receptacle is a quad outlet, flush mount device rated for 20A and 125V AC. Constructed to meet hospital grade requirements, it features four NEMA 5-20R outlets in a single gang configuration. The receptacle uses back wired screw terminals to accommodate #12 AWG copper conductors and includes an anchor hole and loop feature for secure wire termination. Its polycarbonate housing provides impact resistance as specified by manufacturer standards, while the unit is grounded and certified to CSA C22.2 No. 42, NEMA WD-6, and UL498 standards.
Key Features of the HUBBELL 4-PLEX Receptacle:
- Quad Outlet Configuration: Features four NEMA 5-20R outlets in a single device.
- Amperage/Voltage Rating: Rated for up to 20A at 125V AC.
- Back Wired Screw Terminals: Supports #12 AWG copper stranded or solid conductor only
- includes accessible break-off tabs that allow split circuit configuration.
- Grounded Design: Grounding feature included
- meets requirements for hospital grade use.
- Impact Resistant Housing: Polycarbonate housing provides impact resistance as specified by manufacturer standards.
- Flush Mounting: Installs directly into standard electrical boxes using screw mounting hardware (adapter plate included).
- Performance Ratings: Dielectric voltage withstands minimum 2,000V
- current interrupting up to fault level of 1000A per UL498
- flammability rated UL94 V-2.
- Operating Temperature Range: Suitable for continuous use from -40°C (without impact) up to +75°C (+167°F).
- Certifications: Meets CSA C22.2 No.42 File 285, NEMA WD-6, and UL498 File E2186 requirements.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 4.40
- Package Height: 1.20
- Package Weight: 0.46
