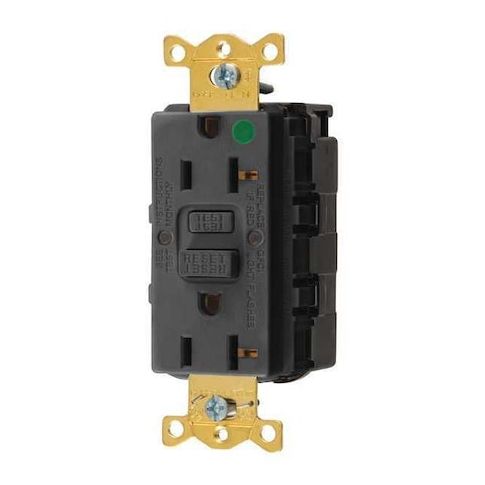

GFCI Rceptcle, Hspital, Blk, 20A, 1 HP MPN:SNAPGF83BLK

• The HUBBELL GFCI Receptacle is a self-testing ground fault circuit interrupter rated for use in commercial environments. It features patented AUTOGUARD® technology that performs periodic self-tests at intervals of approximately 30 seconds, disconnects power when a fault is detected if critical components are compromised. The device includes visual indicators on the face display power status, trip condition, ground fault indication, and end-of-life alerts. No power supplied if line/load connections are reversed for added protection.





  Key Features of the HUBBELL GFCI Receptacle:





  • Amperage Rating: Rated for 20 A at 125V AC with a maximum horsepower rating of 1 hp


  • Rated as "hospital grade" per applicable standards


  • AUTOGUARD® Self-Test Technology: Performs periodic self-tests at intervals of approximately 30 seconds


  • Visual Indicators: Face displays power status, trip condition, ground fault indication, and end-of-life alerts


  • No power supplied if line/load connections are reversed


  • NEMA Configuration: 5-20R decorator duplex outlet type with flush mounting design


  • Material & Construction: Nylon housing with brass contacts
  • modular back wiring accepts up to #12 AWG wire size


  • Includes Mounting Hardware and Wall Plate for installation convenience
