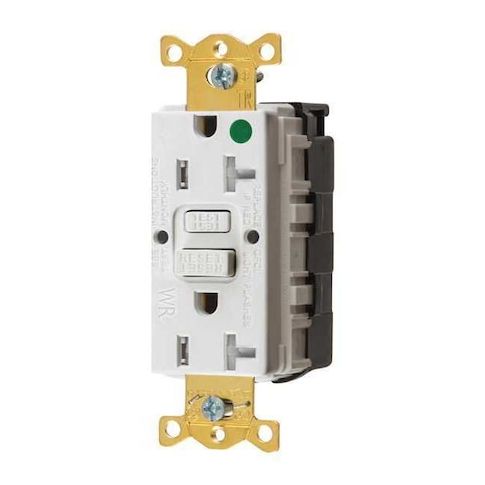

GFCI Rceptcle, Hspital, Wht, 20A, 1 HP MPN:SNAPGFTW83W
Free Shipping
In Stock
Protect your commercial spaces with the HUBBELL GFCI Receptacle, a hospital-grade solution for demanding environments. This rugged device features AUTOGUARD self-test technology, ensuring reliable ground fault protection and automatic testing of receptacle functionality. With tamper-resistant shutters and weather-resistant construction, it meets NEC requirements for safety and durability. The GFCI receptacle is perfect for high-load applications, supporting up to 1 HP loads and rated for 20A at 125V AC. Ideal for hospitals, offices, and other commercial settings, this receptacle provides peace of mind with its integrated self-testing and visual indicators for easy monitoring.
Top product features:
- AUTOGUARD self-test technology performs periodic monitoring of receptacle functionality and will disconnect power when specified conditions are met.
- Tamper-resistant shutters meet NEC requirements for child safety.
- Visual indicators display status information including power presence and trip condition notifications.
Top product applications:
- Commercial applications requiring ground fault protection
- Demanding environments such as hospitals and healthcare facilities
- Heavy-duty industrial settings with high-power loads
The HUBBELL GFCI Receptacle is a hospital grade, rated for commercial applications requiring ground fault protection. It features AUTOGUARD® self-test technology performs periodic monitoring of receptacle functionality and will disconnect power when specified conditions are met. The device includes tamper-resistant shutters
- weather resistant construction, and visual indicators display status information including power presence and trip condition notifications.
Key Features of the HUBBELL GFCI Receptacle:
- Amperage/Voltage: Rated for 20A at 125V AC
- supports up to 1 HP loads
- Grade: Hospital grade construction intended for demanding environments
- Self-Testing: Integrated AUTOGUARD® self-test function with a test cycle approximately every 30 seconds
- Tamper & Weather Resistant: Shutter design meets NEC requirements (TR406.12/WR406.9)
- housing provides UV and corrosion resistance
- NEMA Configuration: 5-20R decorator duplex outlet with flush mount installation
- Wiring Method: Modular back wiring accepts up to 12 AWG wire size
- Status Indicators: Visual indicators provide information on device operation including power presence and trip events
- Reverse Wiring Protection: Power denied to face or downstream if line/load connections are reversed
- Includes mounting hardware and wall plate
- housing made from nylon material
- grounded design with two poles and three wires
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.20
- Package Height: 2.00
- Package Weight: 0.34
