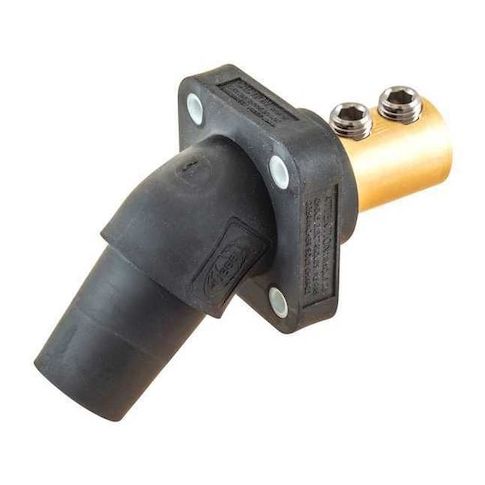

Angled Receptacle, Black, Double Set Screw MPN:HBLFRABK

• The HUBBELL Angled Receptacle, Black, Double Set Screw is a single pole device intended for use in temporary electrical power distribution applications. This angled receptacle features a double set screw terminal connection and is compatible with Series 16 devices. It accommodates cable sizes from 4 AWG to 4/0 AWG and supports both AC and DC applications up to 400 amps and 600 volts.





  Key Features of the HUBBELL Angled Receptacle:





  • Amperage Rating: Rated for up to 400 A (AC/DC)


  • Voltage Rating: Suitable for use at up to 600V AC or 250V DC


  • Cable Range: Accepts wire sizes from #4 AWG to 4/0 AWG


  • Connection Orientation: Angled configuration accommodates certain installation requirements


  • Terminal Connection Type: Double set screw terminal connection is used for conductor retention


  • Contact Material: Brass contacts are used as the contact material


  • Housing Material: Thermoplastic elastomer housing is used as the enclosure material


  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X standards for protection against dust, water, and corrosion


  • Mounting Style: Through hole mounting with screw mount configuration


  • Compatible Series/Fits: Designed for use with Series 16
  • fits Series 16 male connectors
  • female gender configuration


  • Taper Nose End Type matches standard single pole device styles within this series
