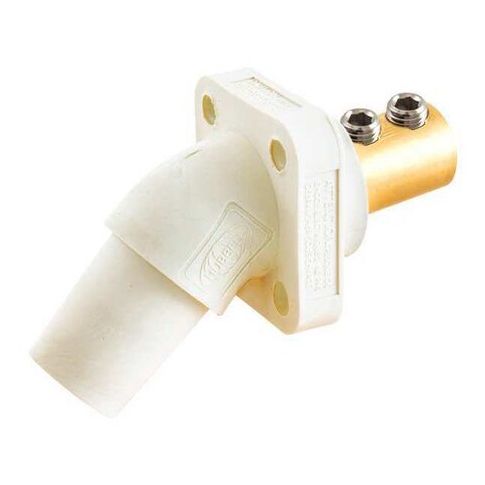

Angled Receptacle, White, Double Set Screw MPN:HBLFRAW

• The HUBBELL Angled Receptacle, White, Double Set Screw is a single pole device intended for temporary electrical power distribution. This angled receptacle includes a double set screw terminal connection and is compatible with Series 16 devices. It accommodates cable sizes from 4 AWG to 4/0 AWG and supports operation at up to 400 amps (AC/DC) and up to 600 volts. The unit has a female connection orientation with a taper nose end type.





  Key Features of the HUBBELL Angled Receptacle:





  • Amperage Rating: Rated for up to 400 A (AC/DC)


  • Voltage Rating: Supports up to 600V AC / 250V DC


  • Cable Range: Accepts wire sizes from #4 to 4/0 AWG


  • Terminal Connection Type: Double set screw design allows for wire termination


  • Connection Orientation: Angled configuration may assist with installation in limited space


  • Contact Material: Brass contacts


  • Housing Material: Thermoplastic elastomer housing for durability


  • NEMA Enclosure Ratings: Meets NEMA Type 12, 3R, and 4X requirements for protection against dust, water, and corrosion


  • Mounting Style: Through hole mounting with screw mount flange (square shape)


  • Compatible Series: Designed for use with Series 16 components
  • fits Series 16 male connectors


  • Standards Compliance: cULus Listed and UL Listed
