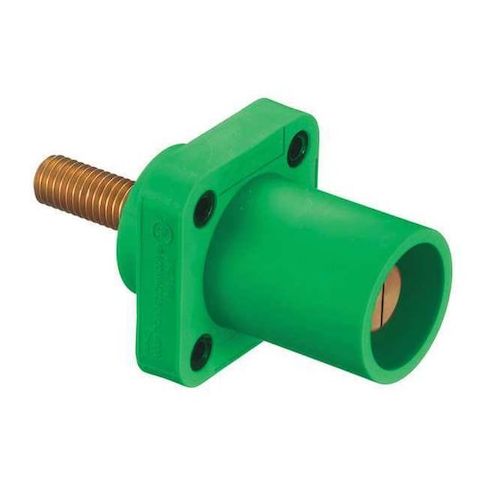

Angled Receptacle, Grn, Male, Threaded Stud MPN:HBLMRASGN
The HUBBELL Angled Receptacle is a versatile, single-pole device designed for temporary electrical power distribution applications. Its angled design allows for installation in limited space environments, making it ideal for use in construction sites, festivals, and other temporary power distribution scenarios. With a high amperage rating of 400A and a voltage rating of 600V AC or 250V DC, this receptacle provides reliable power distribution. Its threaded stud terminal and compatibility with Series 16 devices make it a convenient and efficient solution for a variety of applications, including outdoor events and emergency power distribution.
Top product features:
- Amperage Rating: Rated for up to 400 A (AC/DC)
- Voltage Rating: Suitable for use at 600V AC or 250V DC
- Terminal Connection Type: Threaded stud terminal designed for attachment of compatible connectors/cables
Top product applications:
- Temporary electrical power distribution
- Limited space environments
- Series 16 devices
The HUBBELL Angled Receptacle, Green, Male, Threaded Stud is a single pole device intended for use in temporary electrical power distribution applications. This angled receptacle is compatible with Series 16 devices and features a male connection with a threaded stud terminal.
Key Features of the HUBBELL Angled Receptacle:
- Amperage Rating: Rated for up to 400 A (AC/DC)
- Voltage Rating: Suitable for use at 600V AC or 250V DC
- Connection Orientation: Angled design allows installation in limited space environments
- Terminal Connection Type: Threaded stud terminal designed for attachment of compatible connectors/cables
- Compatible Series: Fits Series 16 female connectors
- Conductor & Contact Material: Brass contact material used in conductor and contact components
- Taper Nose Style: Single pole device style with taper nose end type
- Housing Material: Thermoplastic elastomer housing offers durability
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Cable Size Range: Accepts wire sizes from minimum of 4 AWG to maximum of 4/0 AWG
- Standards Compliance: cULus Listed and UL Listed for recognized performance standards
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 2.00
- Package Weight: 0.87
