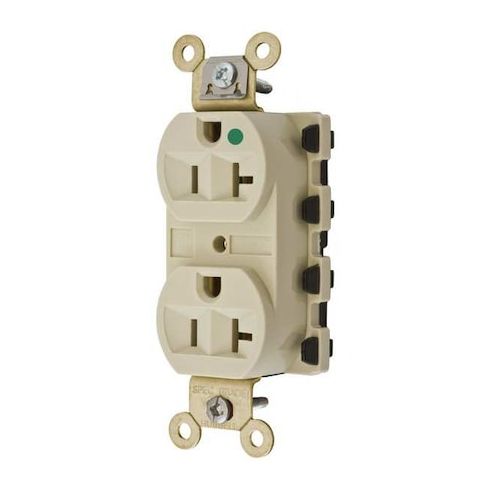

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:SNAP8300IA

• The HUBBELL 20A Duplex Modular Receptacle 125VAC 5-20R IV is a hospital grade, duplex straight blade receptacle suitable for modular wiring installations. Featuring SNAPConnect® technology, this device enables installation of the connector during rough-in, with subsequent placement after wall finishing. The receptacle facilitates electrical connections and enables change-outs by maintenance personnel.





  Key Features of the HUBBELL 20A Duplex Modular Receptacle:





  • Amperage/Voltage: Rated for 20 A at 125 VAC


  • NEMA Configuration: 5-20R, duplex outlet type


  • Wiring Method: Modular back-wired connection with SNAPConnect® system


  • Application Environment: Hospital Grade Fed. Spec., suitable for heavy use environments


  • Grounding: Grounded with stainless steel automatic self-grounding clip and brass ground contacts


  • Material Construction: Nylon face and housing
  • PBT base
  • brass power contacts
  • zinc plated steel mounting screws
  • brass mounting strap


  • Dielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage
  • UL94 V-2 flammability rating


  • Operating Temperature Range: -40°C to +75°C (without impact)


  • Standards Compliance: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186


  • Circuit Interrupting Capability: Certified for current interrupting at full rated current (20 A)
