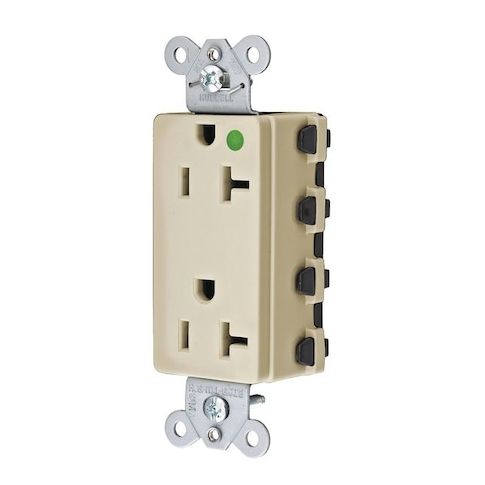

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:SNAP2182IA
Free Shipping
In Stock
The HUBBELL SNAPConnect Hospital Grade Decorator Duplex Receptacle is a reliable and efficient solution for heavy use environments, such as hospitals, offices, and residential areas. This 20 A, 125V AC flush mount outlet features a connectorized design for easy setup and device change-out, making it ideal for modular wiring installations. With its hospital-grade rating and compliance with industry standards, this receptacle ensures safe and secure power distribution. Its durable construction and robust features make it suitable for high-traffic areas, and its flush mount design provides a sleek and unobtrusive appearance. Perfect for applications where reliability and safety are paramount.
Top product features:
- It is a 20 A, 125V AC flush mount outlet suitable for modular wiring installations.
- The receptacle has a connectorized design that allows the modular connector to be installed during rough-in and then snapped into place after wall installation, facilitating setup and device change-out.
- It withholds a minimum 2,000V dielectric voltage and has a UL 94V-2 flammability rating.
Top product applications:
- Office Buildings
- Hospitals
- Hotels
The HUBBELL SNAPConnect® Hospital Grade Decorator Duplex Receptacle is a 20 A, 125V AC flush mount outlet suitable for modular wiring installations. Featuring a connectorized design, this receptacle allows the modular connector to be installed during rough-in and then snapped into place after wall installation, facilitating setup and device change-out. It is rated hospital grade
- complies with applicable industry standards for heavy use environments.
Key Features of the HUBBELL SNAPConnect® Hospital Grade Decorator Duplex Receptacle:
- Amperage/Voltage: Rated for 20 A at 125V AC
- NEMA Configuration: 5-20R decorator duplex outlet with polarized, grounded connections
- Wiring Method: Modular back-wired connection supports #12 AWG wire size
- Mounting Type: Flush mount with included grounding clip and mounting hardware
- Material Construction: Nylon face and housing
- brass power contacts
- galvanized steel mounting strap
- stainless steel self-grounding staple
- Dielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage
- UL 94V-2 flammability rating
- Operating Temperature Range: -40°F to 167°F (maximum continuous operation at 75°C)
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 1.90
- Package Height: 1.50
- Package Weight: 0.20
