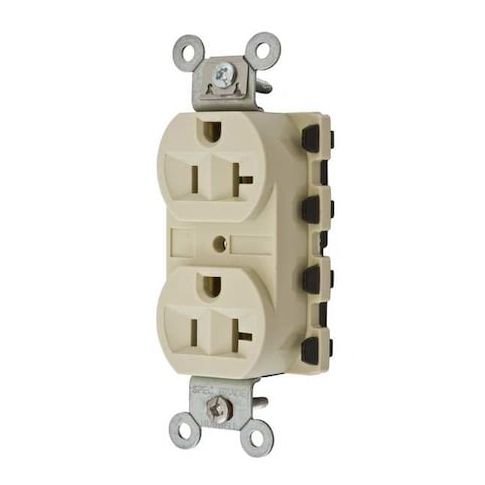

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:SNAP5362IA
Free Shipping
In Stock
The HUBBELL 20A Duplex Modular Receptacle is a versatile and efficient solution for modular wiring installations. Suitable for a wide range of applications, including residential, commercial, and industrial settings, this receptacle offers a straightforward installation process with its connectorized device and snap-in terminal installation. The modular design facilitates easy change-outs and connections, reducing the need for traditional pigtail wiring. With its durable construction and high dielectric strength, this receptacle withstands harsh temperatures and provides reliable performance. Perfect for new constructions and renovations, it's an ideal choice for builders, contractors, and electricians seeking a hassle-free and cost-effective solution.
Top product features:
- Amperage/Voltage: Rated for 20 A at 125 VAC with NEMA 5-20R configuration
- Modular back-wired connection using SNAPConnect system
- Dielectric Strength: Withstands minimum of 2,000V
Top product applications:
- Commercial Building Construction
- Industrial Setting
- Residential Construction
The HUBBELL 20A Duplex Modular Receptacle 125VAC 5-20R IV is a duplex straight blade receptacle suitable for modular wiring installations.
Key Features of the HUBBELL 20A Duplex Modular Receptacle:
- Amperage/Voltage: Rated for 20 A at 125 VAC with NEMA 5-20R configuration
- Wiring Method: Modular back-wired connection using SNAPConnect® system
- Mounting Type: Flush mount with included mounting hardware
- Material Construction: Nylon face and housing
- brass contacts
- galvanized steel strap
- stainless steel self-grounding staple
- Dielectric Strength: Withstands minimum of 2,000V
- Operating Temperature Range: -40°F to 167°F (maximum continuous use at 75°C)
- Circuit Configuration: Duplex outlet, single phase, polarized, grounded (2-pole/3-wire)
- Standards Compliance: CSA Certified C22.2 No.42 File 285
- Federal Specification W-C-596
- NEMA WD-6
- UL Listed (UL498 File E2186)
The HUBBELL connectorized device enables connectorized wiring during rough-in and snap-in terminal installation after wall completion.
The modular design facilitates change-outs and connections without the need for traditional pigtail wiring.
Audible snap feature indicates when connection is made during installation.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.70
- Package Height: 4.20
- Package Weight: 0.15
