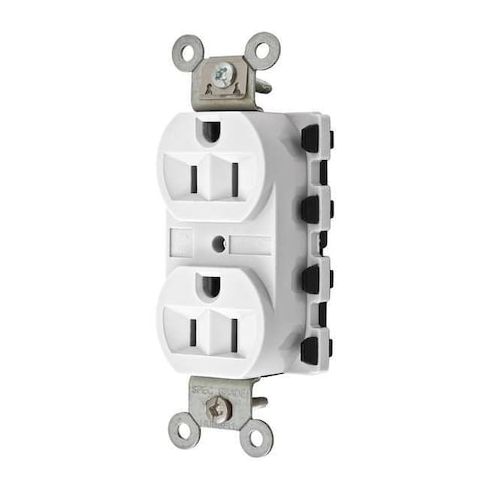

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:SNAP5262WA
Free Shipping
In Stock
The HUBBELL 15A Duplex Modular Receptacle is a versatile and reliable solution for modular wiring installations. Its flush-mount design and snap-in connection system make it easy to install and connect, even in tight spaces. With a rating of 15 A, 125 VAC, and a NEMA 5-15R configuration, this receptacle is perfect for residential and commercial applications, such as homes, offices, and data centers. Its durable construction and high dielectric strength ensure safe and reliable operation in a variety of environments, from -40°C to +75°C. Ideal for use in modular wiring installations, this receptacle is a great choice for builders, electricians, and facility managers.
Top product features:
- Rated for 15 A, 125 VAC operation
- NEMA Configuration: NEMA 5-15R duplex outlet
- Modular back-wired connection suitable for #12 AWG wire
Top product applications:
- Residential electrical installations
- Commercial electrical installations
- Industrial electrical installations
The HUBBELL 15A Duplex Modular Receptacle 125VAC 5-15R WH is a flush-mount duplex receptacle intended for modular wiring installations.
Key Features of the HUBBELL 15A Duplex Modular Receptacle:
- Amperage/Voltage: Rated for 15 A, 125 VAC operation
- NEMA Configuration: NEMA 5-15R duplex outlet
- Wiring Method: Modular back-wired connection suitable for #12 AWG wire
- Mounting Type: Flush mount with included mounting hardware
- single gang configuration
- Material Construction: Nylon face and housing
- brass contacts
- galvanized steel mounting strap
- Operating Temperature Range: -40°C to +75°C (without impact)
- Dielectric Strength: Withstands minimum of 2,000V dielectric voltage
- AFCI/GFCI/Tamper Resistant/Surge Protection: Not applicable or not present on this model
- Certifications & Standards: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186 compliant
The HUBBELL 15A Duplex Modular Receptacle features SNAPConnect® technology to support connectorized installation during rough-in and snap-in connection after wall completion.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.81
- Package Width: 4.25
- Package Height: 3.50
- Package Weight: 2.00
