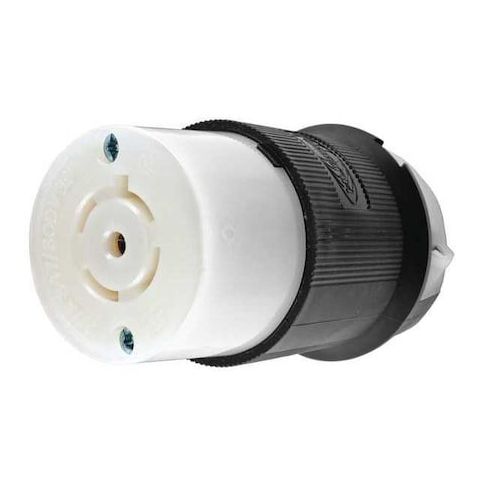

Locking Connector, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White MPN:HBL2533

• The HUBBELL 20A Locking Connector L23-20R is a heavy-duty industrial connector intended for use in specified environments. It features a locking mechanism that helps reduce the likelihood of accidental disconnection and accommodates 4 poles and 5 wires, rated for 347/600V AC at 20 amps. The connector is constructed with a natural white nylon body and brass contacts, including an integral dust shield

• body and contacts are made from materials rated for resistance to corrosion and ingress of dust (IP20).




  Key Features of the HUBBELL - 20A Locking Connector L23-20R:





  • Amperage/Voltage Rating: Rated for 20 A at 347/600V AC, intended for use in applications requiring this rating.


  • Cable Range: Accepts cable diameters from 0.350" to 1.150".


  • Wire Size Compatibility: Supports #16 AWG to #8 AWG stranded copper wire via screw terminals.


  • Body Material: Constructed from nylon body material rated HB or better per UL94 standard.


  • Contact Material: Brass contacts provide reliable conductivity.


  • NEMA Configuration: L23-20R
  • non-grounded, straight connection orientation.


  • Environmental Use: Designed for indoor dry locations
  • IP20 enclosure rating.


  • Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous operation.


  • Certifications: CSA C22.2 No.42, Federal Specification W-C-596, UL 498 listed.
