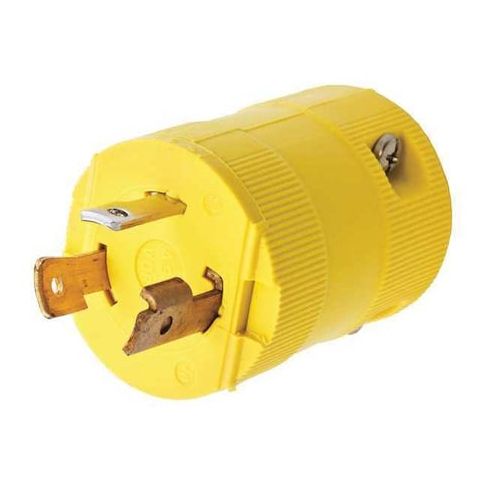

Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow MPN:HBL2611VY
Free Shipping
In Stock
The HUBBELL 30A Locking Plug L5-30P YL is designed for demanding industrial use, providing a secure electrical connection in harsh environments. Its nylon housing offers specified impact and crush resistance, while the cord grip minimizes conductor movement and strain on wiring terminals. Rated for 30 A at 125V AC, this plug accepts cable diameters from #14 AWG to #8 AWG wire size. Suitable for use in indoor dry locations, it meets UL 498, CSA C22.2 No.42, and Federal Specification W-C-596 requirements. Ideal for applications where safety and reliability are paramount, such as in manufacturing, construction, and commercial settings.
Top product features:
- The HUBBELL 30A Locking Plug L5-30P YL features a nylon housing with specified impact and crush resistance.
- The plug utilizes clamp-type screw terminals that are intended to bundle conductor strands during installation.
- The plug is rated for operation at temperatures up to 75°C and down to -40°C.
Top product applications:
- Industrial Electrical Panel Installation
- Heavy-Duty Machinery Connection
- Outdoor Lighting and Sign Installation
The HUBBELL 30A Locking Plug L5-30P YL is a locking plug rated for use in demanding environments where a secure electrical connection is required. It features a nylon housing with specified impact and crush resistance, with a cord grip designed to help minimize conductor movement and strain on wiring terminals. The plug utilizes clamp-type screw terminals are intended to bundle conductor strands during installation.
Key Features of the HUBBELL 30A Locking Plug L5-30P YL:
- Amperage/Voltage Rating: Rated for 30 A at 125V AC, suitable for demanding industrial use.
- Cord Range: Accepts cable diameters from 0.590 in to 0.930 in (#14 AWG to #8 AWG wire size).
- Material: Nylon body provides specified chemical resistance and impact tolerance
- brass blades used as current-carrying components.
- Wire Connection Type: Screw terminals with hinged wiring style
- clamp design intended to facilitate strand bundling during installation.
- Operating Temperature: Rated for operation at temperatures up to 75°C and down to -40°C (without impact).
- Standards Compliance: Meets UL 498, CSA C22.2 No.42, Federal Specification W-C-596 requirements.
- Ingress Protection: IP20 rating
- intended for indoor dry locations unless additional protection is provided.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.20
- Package Height: 2.10
- Package Weight: 0.25
