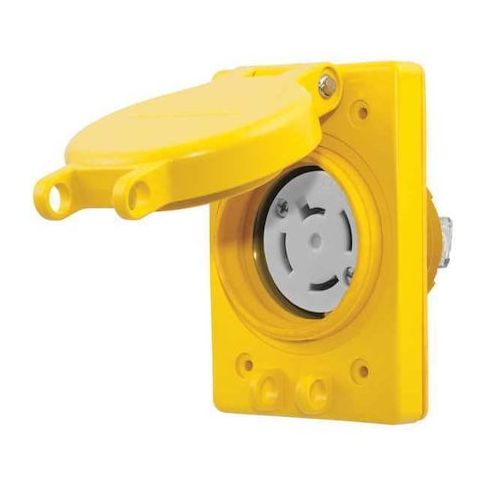

Watertight Flanged Locking Receptacle, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Yellow MPN:HBL67W09

• The HUBBELL 20A Watertight Locking Receptacle is a flanged, flush-mount electrical device suitable for use in environments requiring watertight and impact-resistant electrical connections. Featuring a lift cover and constructed from impact-modified PBT with a thermoplastic elastomer seal, this receptacle features construction intended to limit exposure to moisture and environmental elements. It accommodates 4-pole, 4-wire configurations at 120/208V AC and is suitable for panel or FD/FS box mounting.





  Key Features of the HUBBELL 20A Watertight Locking Receptacle:





  • Amperage Rating: Rated for 20 A current at 120/208V AC


  • Poles/Wires: Supports four poles and four wires (4P, 4W)


  • Contact Material: Nickel-plated brass contacts


  • Cord Size Compatibility: Accepts wire sizes from #18 AWG to #8 AWG


  • Mounting Type: Flush mount with rectangular flange design


  • NEMA Enclosure Ratings: Meets NEMA Types 12, 4, 4X, 6, and 6P requirements
  • IP69K rated when in use


  • Operating Temperature Range: -40°F to +140°F (-40°C to +60°C continuous)


  • Resistance Properties: Housing constructed from materials rated for impact resistance
  • shrouded design with watertight features


  • Standards Compliance: Conforms to ANSI standards as well as NEMA WD-1 and WD-6 specifications


  • Special Feature: Includes protective cover
