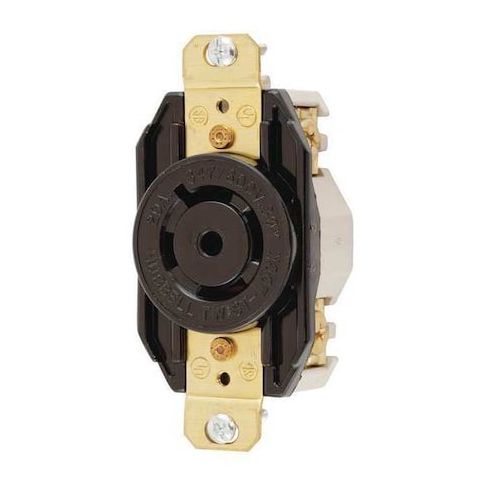

Locking Receptacle, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals MPN:HBL2530

• The HUBBELL 20A Locking Receptacle L23-20R is an industrial electrical receptacle rated for use in specified voltage and amperage applications. It features a twist-lock mechanism that secures the connection and accommodates 4 poles and 5 wires, rated for 347/600V AC three-phase applications. The device is constructed with a nylon housing and brass contacts

• intended for indoor dry locations.




  Key Features of the HUBBELL L23-20R Locking Receptacle:





  • Amperage/Voltage Rating: Rated for 20 A at 347/600V AC, three-phase


  • NEMA Configuration: L23-20R with polarized design


  • Connection Type: Screw terminals accept #16 AWG to #8 AWG solid or stranded copper wire


  • Mounting Type: Flush mount
  • includes mounting hardware (screw mounting)


  • Material Construction: Nylon polyester base, nylon housing, all-brass mounting and grounding system


  • Dielectric Strength & Flammability: Dielectric strength: minimum 2,000V
  • UL94 V2 flammability rating or better


  • Operating Temperature Range: Maximum continuous 75°C (167°F), minimum -40°C without impact


  • Wire restraint recesses accommodate both back and side wiring


  • Coding & Identification: Face color coding by voltage
  • terminals identified per UL498 standards (X, Y, Z, White, Green)


  • Standards Compliance: Certified to CSA C22.2 No.42
  • Federal Specification W-C-596
  • Listed to UL498
