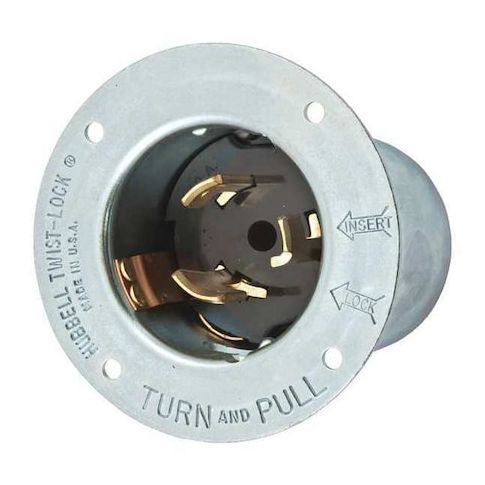

Flanged Locking Inlet, Non-NEMA, 50 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals MPN:CS8475
Free Shipping
In Stock
The HUBBELL 50A Flushed Locking Inlet is a reliable and secure solution for industrial applications, providing a twist-lock mechanism that reduces the likelihood of accidental disconnection. Designed for use in indoor dry locations, this device is rated for 50 amps at 480V AC, making it suitable for a range of applications, including manufacturing, warehousing, and commercial settings. With its steel housing and brass blades, this inlet offers durability and reliability, while its CSA and UL certification ensure compliance with industry standards. Its flush mount design and screw terminals make it easy to install and maintain.
Top product features:
- Twist-lock design intended to reduce the likelihood of accidental disconnection
- Accepts #10 AWG to #6 AWG solid or stranded copper wire via screw terminals
- UL94 V-0 rating for specified levels of moisture and heat resistance
Top product applications:
- Industrial Control Panels
- Industrial Power Distribution Systems
- Machine Tool and Equipment
The HUBBELL 50A Flushed Locking Inlet is a flanged locking inlet suitable for use in industrial applications. It features a twist-lock mechanism with a 2-pole, 3-wire configuration and is rated for 50 amps at 480V AC. The device has a steel housing with zinc plating and includes brass blades for electrical connections. This inlet is suitable for indoor dry locations unless additional protection is provided.
Key Features of the HUBBELL - 50A Flushed Locking Inlet:
- Amperage/Voltage: Rated for 50 A, 480V AC single phase
- Lock Type: Twist-lock design intended to reduce the likelihood of accidental disconnection
- Number of Poles/Wires: 2 poles, 3 wires
- grounded
- Material Construction: Steel flange and housing (zinc plated), brass blade material
- Mounting Type: Flush mount with screw mounting hardware
- flanged type
- Cable Accommodation: Accepts #10 AWG to #6 AWG solid or stranded copper wire via screw terminals
- Operating Temperature Range: -40°C minimum to +75°C maximum (continuous use without impact)
- NEMA Enclosure Rating/IP Rating: NEMA Type 1 / IP20
- intended for indoor dry conditions only
- Flammability/Resistance Properties: UL94 V-0 rating
- constructed with materials rated for specified levels of moisture and heat resistance
- Standards Compliance: Certified to CSA C22.2 No.42 and listed to UL498 standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.60
- Package Height: 3.50
- Package Weight: 0.70
