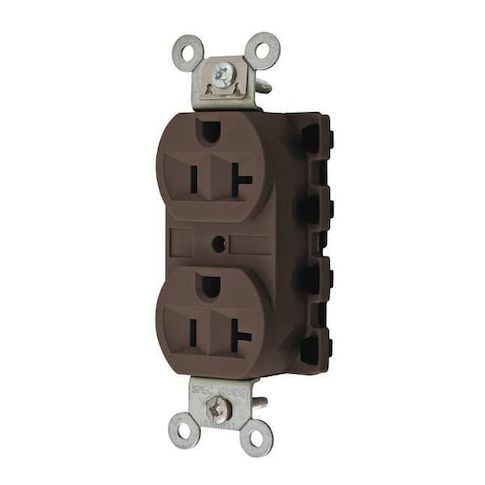

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:SNAP5362A
Free Shipping
In Stock
The HUBBELL 20A Duplex Modular Receptacle is a versatile and reliable solution for various applications. Suitable for modular wiring installations, this receptacle features SNAPConnect technology for easy installation and connection. Rated for 20 amps at 125 volts AC, it's ideal for residential and commercial use, including offices, schools, and homes. Its polarized, grounded design and flush mount installation provide added safety and convenience. With a wide operating temperature range and certifications from CSA, UL, and NEMA, this receptacle is a trusted choice for a variety of electrical needs, including lighting, appliances, and devices.
Top product features:
- Rated for 20 A, 125 VAC operation
- Features a polarized, grounded design with a 5-20R duplex outlet configuration
- Supports modular back-wired connection with #12 AWG wire size
Top product applications:
- Residential electrical installations
- Commercial electrical installations
- Industrial electrical installations
The HUBBELL 20A Duplex Modular Receptacle 125VAC 5-20R BN is a suitable for modular wiring installations. Featuring SNAPConnect® technology, this device incorporates SNAPConnect® technology that permits the connector to be installed during rough-in and then attached after wall completion. The receptacle is rated for 20 amps at 125 volts AC and features a Finder Groove Face style
- straight blade configuration.
Key Features of the HUBBELL - 20A Duplex Modular Receptacle:
- Amperage/Voltage: Rated for 20 A, 125 VAC operation
- NEMA Configuration: 5-20R duplex outlet with polarized, grounded design
- Wiring Method: Modular back-wired connection supports #12 AWG wire size
- Material Construction: Nylon face and housing
- brass contacts
- galvanized steel mounting strap
- Mounting Type: Flush mount with included grounding clip, staple, and mounting hardware
- Dielectric Strength & Flammability: Withstands minimum of 2,000V dielectric voltage
- UL94 V-2 flammability rating
- Operating Temperature Range: -40°F to +167°F (without impact)
- Certifications & Standards: CSA Certified C22.2 No.42 File 285
- Federal Specification W-C-596
- NEMA WD-6 compliant
- UL Listed to UL498 File E2186
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.80
- Package Height: 4.30
- Package Weight: 0.15
