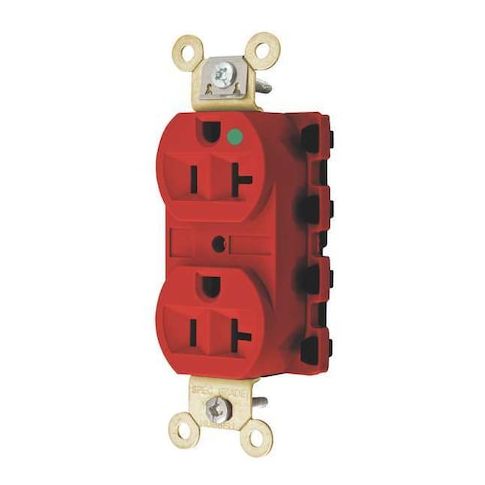

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:SNAP8300RA
Free Shipping
In Stock
The HUBBELL 20A Duplex Modular Receptacle is a high-performance outlet designed for commercial and high-traffic settings. Its SNAPConnect technology enables easy installation and connection, while the audible snap feature provides a clear indication of a secure connection. Rated for 20 A, 125 VAC operation, this receptacle is ideal for use in offices, hospitals, and other environments where reliability and safety are paramount. With its durable nylon face and housing, brass power and ground contacts, and stainless steel self-grounding clip, this outlet withstands harsh conditions and meets strict safety standards, making it a reliable choice for demanding applications.
Top product features:
- The receptacle features SNAPConnect technology, enabling the connector to be installed during rough-in and then attached after wall completion.
- The receptacle includes an audible snap feature that indicates when connection is made.
- The receptacle is designed with a flush mount design with included mounting hardware.
Top product applications:
- High-traffic commercial settings
- Commercial kitchens
- Office buildings
The HUBBELL 20A Duplex Modular Receptacle 125VAC 5-20R RD is a duplex straight blade receptacle intended for modular wiring installations. Featuring SNAPConnect® technology, this device enables the connector to be installed during rough-in and then attached after wall completion. The receptacle is intended for use in high-traffic or commercial settings and includes an audible snap feature that indicates when connection is made.
Key Features of the HUBBELL 20A Duplex Modular Receptacle:
- Amperage/Voltage: Rated for 20 A, 125 VAC operation
- NEMA Configuration: 5-20R duplex outlet with Finder Groove Face style
- Wiring Method: Modular back-wired connection supports #12 AWG wire size
- Mounting Type: Flush mount design with included mounting hardware
- Material Construction: Nylon face and housing
- brass power and ground contacts
- stainless steel self-grounding clip
- Certification & Standards: Hospital Grade Fed. Spec., CSA Certified C22.2 No.42, NEMA WD-6 compliant, UL Listed to UL498 File E2186
- Performance Ratings: Withstands dielectric voltage of at least 2,000V
- flammability rated UL94 V-2
- operating temperature range -40°C to +75°C (without impact)
- Audible Snap Feature: Includes an audible snap feature that indicates when connection is made
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.70
- Package Height: 4.30
- Package Weight: 0.15
