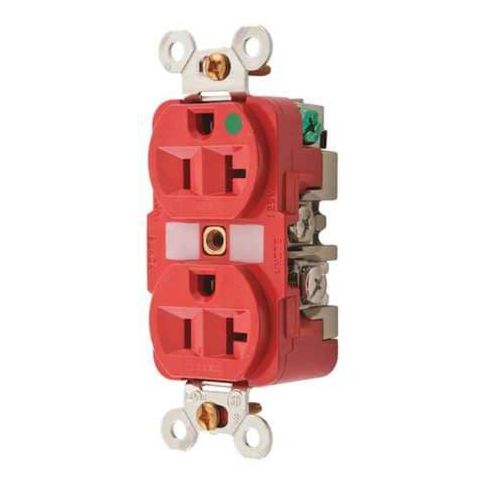

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8300RMRI
Free Shipping
In Stock
This 20A duplex receptacle is designed for medical and MRI lab environments, featuring non-ferrous construction to prevent magnetic interference. It meets hospital-grade standards and is suitable for indoor installations with a flush mount design. The receptacle supports both back and side wiring methods and accommodates #12 to #10 AWG copper wire. Its four-point grounding system and nickel-plated brass contacts ensure reliable and safe connections. Ideal for hospitals, clinics, and medical facilities, this receptacle provides a secure and efficient way to power medical equipment and devices in sensitive environments.
Top product features:
- The receptacle features a non-ferrous construction to prevent magnetic interference.
- It supports both back and side wiring methods using screw terminals.
- The receptacle has a four-point grounding system for enhanced safety.
Top product applications:
- Medical Facilities
- MRI Labs
- Hospitals
The HUBBELL 20A Duplex MRI Receptacle 125VAC 5-20R RD is a hospital grade, traditional duplex receptacle suitable for installation in medical and MRI lab environments. It features all non-ferrous construction to prevent magnetic interference, with a flush mount design suitable for indoor installations. The receptacle supports both back and side wiring methods using screw terminals, accommodating #12 to #10 AWG copper wire.
Key Features of the HUBBELL 20A Duplex MRI Receptacle:
- Amperage/Voltage: Rated for 20 A at 125 VAC
- NEMA Configuration: 5-20R duplex outlet with polarized, grounded connections (2-pole, 3-wire)
- Construction: Non-ferrous materials
- nickel-plated brass contacts and integral ground strap
- Hospital Grade: Meets Federal Specification W-C-596 and UL Hospital Grade requirements
- Impact Resistant: Deep nylon face
- Grounding System: Four-point grounding system
- Wiring Method: Back or side wired screw terminals compatible with stranded or solid copper wire (#12–#10 AWG)
- Operating Temperature Range: -40°F to +167°F (maximum continuous temperature up to 75°C)
- Includes mounting hardware
- wall plate or weatherproof cover included as specified by application needs
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 4.30
- Package Height: 1.50
- Package Weight: 0.30
