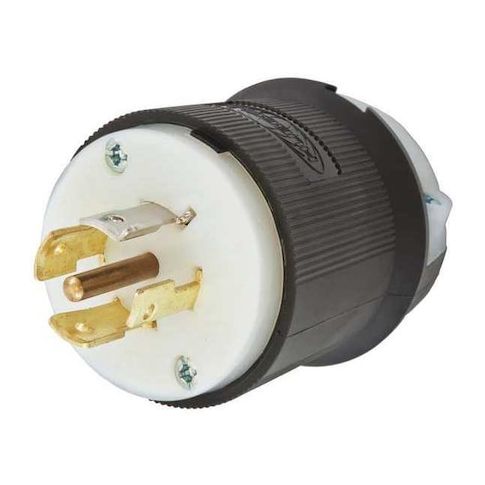

Locking Plug, L23-20P, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White MPN:HBL2531
Free Shipping
In Stock
The HUBBELL 20A Locking Plug L23-20P is a reliable and secure solution for industrial electrical connections. Designed for use in dry indoor environments, this four-pole, five-wire plug supports up to 20 amps at 347/600V AC. Its cord-mounted nylon housing accommodates cable diameters from 0.35 to 1.15 inches, making it compatible with a variety of listed portable cords. Ideal for applications such as manufacturing, construction, and maintenance, this locking plug ensures safe and efficient electrical connections. Its screw terminals and funnel-shaped wire entry simplify wire termination, while its integral dust shield limits dust and contaminants.
Top product features:
- Accommodates cable diameters from 0.35 to 1.15 inches
- Supports up to 20 amps at 347/600V AC
- Utilizes screw terminals for wire connection
Top product applications:
- Industrial Power Distribution
- Heavy-Duty Machine Equipment
- High-Tech Manufacturing Facilities
The HUBBELL 20A Locking Plug L23-20P is a four-pole, five-wire industrial-grade plug rated for use in industrial applications where secure electrical connections are required. It features a cord-mounted nylon housing and accommodates cable diameters from 0.35 to 1.15 inches, compatible with listed portable cords intended for dry indoor environments. The plug supports up to 20 amps at 347/600V AC and utilizes screw terminals for wire connection.
Key Features of the HUBBELL - 20A Locking Plug L23-20P:
- NEMA Configuration: L23-20P, rated for three-phase power at 347/600V AC
- Wire Accommodation: Accepts #16 AWG to #8 AWG stranded copper wire
- Cord Grip Design: Is intended to reduce strain on terminations
- Funnel-Shaped Wire Entry: Assists with wire termination
- Integral Dust Shield: Is included to limit ingress of dust or contaminants into the wiring chamber
- Housing Material: nylon
- Operating Temperature Range: -40°C to +75°C (without impact)
- Dielectric Strength: Withstands minimum of 2,000V
- certified current interrupting at full rated current
- Standards Compliance: Certified to CSA C22.2 No.42, UL 498, Federal Specification W-C-596
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.40
- Package Height: 2.40
- Package Weight: 0.40
