Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:SNAP5362GYTRA
Free Shipping
In Stock

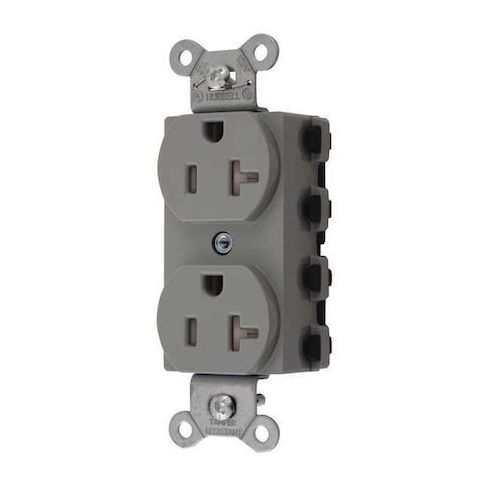

The HUBBELL SNAPConnect 5-20R Receptacle is a reliable and easy-to-install solution for commercial settings, ideal for indoor use in dry locations. This 20 amp, 125V AC duplex outlet features a modular design with connectorized wiring and a snap-in terminal system, making installation and device replacement a breeze. With its tamper-resistant design and heavy-duty construction, it provides added safety and durability. Suitable for a wide range of applications, including offices, schools, and healthcare facilities, this receptacle is UL Listed and CSA Certified, ensuring compliance with industry standards. Its compact size and flush mount design make it a convenient fit for standard single-gang boxes.
Top product features:
- Rated for 20 A, 125V AC operation
- Includes built-in tamper resistance
- Supports modular back-wired connection for #12 AWG wire size
Top product applications:
- Commercial Office Spaces
- Industrial Facilities
- Retail Stores
The HUBBELL SNAPConnect® 5-20R Receptacle is a 20 amp, 125V AC flush mount duplex outlet suitable for use in commercial settings. This modular receptacle includes connectorized wiring to facilitate installation and device replacement, utilizing a snap-in terminal system in place of traditional pigtail wiring. The unit is tamper-resistant
- intended for indoor use in dry locations.
Key Features of the HUBBELL SNAPConnect® 5-20R Receptacle:
- Amperage/Voltage: Rated for 20 A, 125V AC operation
- NEMA Configuration: Standard duplex outlet with NEMA 5-20R configuration
- Wiring Method: Modular back-wired connection supports #12 AWG wire size
- Mounting Type: Flush mount design fits standard single-gang boxes
- Tamper Resistant: Includes built-in tamper resistance
- Material & Construction: Nylon housing with brass contacts
- extra heavy duty specification grade
- Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)
- Certifications & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-596, NEMA WD-6 compliant
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.00
- Package Height: 1.50
- Package Weight: 0.10
