Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:SNAP8300ILTRA
Free Shipping
In Stock

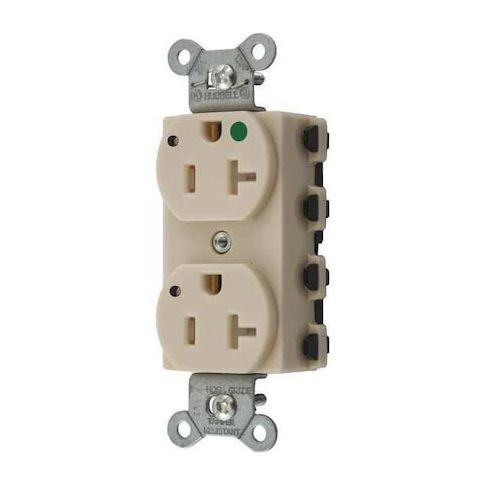

The HUBBELL SNAPConnect Hospital Grade Duplex Receptacle is a reliable and versatile outlet solution for commercial and hospital settings. Suitable for indoor use in dry locations, this 20 amp, 125V AC receptacle features a flush mount design, modular wiring, and tamper-resistant shutters for added safety. The device also includes a green LED indicator to ensure proper function. With its CSA certification and UL listing, this receptacle meets stringent standards for use in high-traffic areas. Ideal for use in hospitals, clinics, offices, and other commercial spaces, this receptacle provides a secure and efficient way to power devices and equipment.
Top product features:
- Rated for 20 A at 125V AC
- Modular back-wired connection using #12 AWG wire
- Built-in tamper-resistant shutters present on device
Top product applications:
- Commercial settings
- Hospital settings
- Indoor use in dry locations
The HUBBELL SNAPConnect® Hospital Grade Duplex Receptacle is a 20 amp, 125V AC flush mount outlet suitable for use in commercial and hospital settings. This standard duplex receptacle features modular wiring with a connectorized design, allowing the terminal to be snapped into place after rough-in installation. The device includes tamper-resistant shutters and an LED indicator, and is suitable for indoor use in dry locations.
Key Features of the HUBBELL SNAPConnect® Hospital Grade Duplex Receptacle:
- Amperage/Voltage: Rated for 20 A at 125V AC
- NEMA Configuration: 5-20R duplex outlet with straight blade orientation
- Mounting Type: Flush mount
- single gang configuration
- Wiring Method: Modular back-wired connection using #12 AWG wire
- Tamper Resistant: Built-in tamper-resistant shutters present on device
- Indicator Type: Green LED indicator present on device face
- Material & Construction: Nylon housing with brass contacts
- smooth face style
- Standards Compliance: CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186
- Operating Temperature Range: -40°F minimum to +167°F maximum (continuous)
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.90
- Package Height: 4.30
- Package Weight: 0.20
