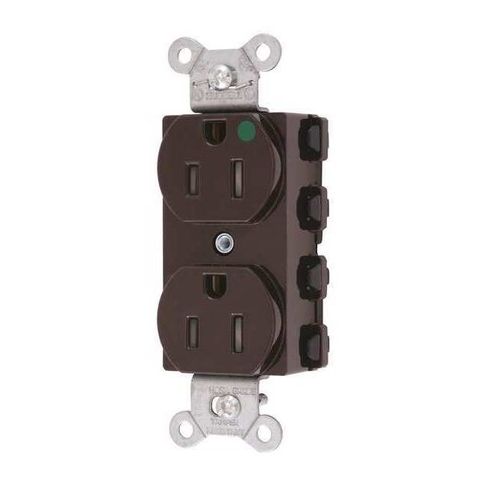

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:SNAP8200TRA

• The HUBBELL SNAPConnect® Receptacle is a 15 amp, 125V AC flush mount duplex outlet suitable for use in commercial and hospital settings. This modular receptacle features a connectorized wiring method that enables installation without traditional pigtails. The device includes tamper-resistant shutters and is suitable for indoor use in dry locations.





  Key Features of the HUBBELL SNAPConnect® Receptacle:





  • Amperage/Voltage: Rated for 15 A at 125V AC


  • NEMA Configuration: 5-15R standard duplex outlet with polarized, grounded design


  • Mounting Type: Flush mount with smooth face style


  • Wiring Method: Modular back-wired connection supports #12 AWG wire size


  • Tamper Resistant: Includes built-in tamper-resistant mechanism


  • Material & Construction: Nylon housing with brass contacts
  • assembled in USA


  • Standards Compliance: CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186


  • Operating Temperature Range: -40°C to +75°C (without impact)
