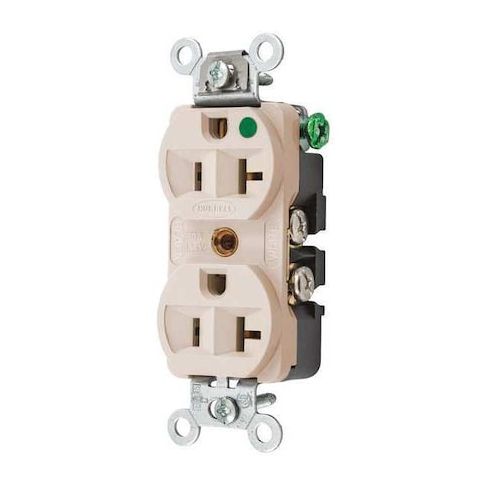

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8300HLA
Free Shipping
In Stock
The HUBBELL 5-20R Hospital Grade Duplex Receptacle is a reliable and durable solution for commercial and hospital-grade environments. This flush mount outlet is designed for high-traffic areas and features a compact, impact-resistant design with triple wipe brass contacts for consistent electrical contact. It accommodates both back and side wiring methods, making it ideal for a variety of applications, including healthcare facilities, offices, and educational institutions. The receptacle's four-point grounding system and UL94 V-0 flammability rating ensure safe and reliable operation, making it a great choice for environments where electrical safety is paramount.
Top product features:
- Accommodates both back and side wiring methods using screw terminals.
- Accepts #12 to #10 AWG stranded or solid copper wire.
- Features a four-point grounding system with stainless steel auto ground clip and silicon bronze ground screws.
Top product applications:
- Commercial Settings
- Hospital Environments
- Industrial Facilities
The HUBBELL 5-20R Hospital Grade Duplex Receptacle is a flush mount, 20A, 125V AC outlet suitable for installation in commercial and hospital-grade environments. This standard duplex receptacle features a slender, compact design with an impact-resistant finder groove face and triple wipe brass contacts for consistent electrical contact. It accommodates both back and side wiring methods using screw terminals and supports #12 to #10 AWG stranded or solid copper wire.
Key Features of the HUBBELL 5-20R Hospital Grade Duplex Receptacle:
- Amperage/Voltage: Rated for 20A at 125V AC
- NEMA Configuration: 5-20R, traditional duplex style
- Mounting Type: Flush mount with included mounting hardware
- Wiring Method: Back and side wired screw terminals
- accepts #12–#10 AWG copper wire
- Material Construction: Impact-resistant nylon housing
- reinforced PET base
- thermoplastic components
- Contact Material: Brass power contacts with nickel plating for maintained specified contact pressure
- Grounding System: Four-point grounding system with stainless steel auto ground clip and silicon bronze ground screws
- Performance Ratings: Withstands dielectric voltage of minimum 2,000V
- UL94 V-0 flammability rating
- certified for current interruption at the rated current
- Operating Temperature Range: -40°C (w/o impact) to +75°C continuous operation
- Certifications & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), NEMA WD-6 compliant, Federal Specification W-C-596G Hospital Grade Fed. Spec.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 1.80
- Package Height: 1.50
- Package Weight: 0.30
