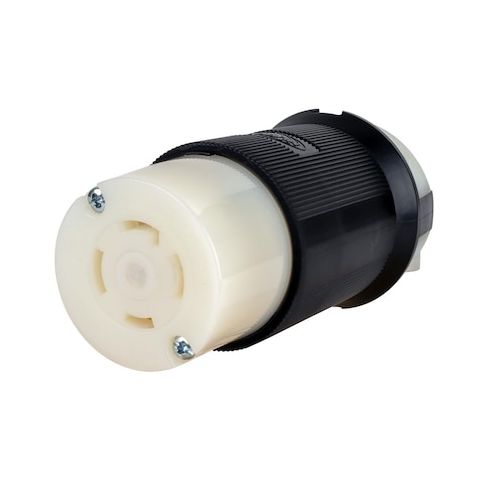

Locking Connector, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Spring Clamp Terminals MPN:HBL2713ST

• The HUBBELL Locking Connector is a screwless electrical connector designed for wire termination in indoor, dry industrial settings. Featuring the EdgeConnect™ system, it allows users to insert wires and secure them by pressing a plunger

• tool-free operation. The connector accommodates 8–16 AWG wire sizes and supports single-phase applications up to 30 A at 125/250V AC with a NEMA L14-30R configuration.




  Key Features of the HUBBELL Locking Connector:





  • Wire Connection Type: Spring clamp terminals allow for tool-free terminations.


  • NEMA Configuration: L14-30R
  • intended for use with applications requiring the L14-30R configuration.


  • Current & Voltage Rating: Rated for 30 A and 125/250V AC single-phase circuits.


  • Wire Size Compatibility: Accepts wire sizes from 8 AWG to 16 AWG.


  • Cable Diameter Range: Accepts cable diameters from 0.35 in to 1.15 in.


  • Operating Temperature Range: Operating temperature range: -40°C to +75°C.


  • Housing Material & Resistance Properties: Nylon housing provides impact resistance
  • UL94 HB flammability rating.


  • Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, and UL498 standards.


  • Ingress Protection (IP): Rated IP20 for indoor use only
  • not shrouded or midget locking type.
