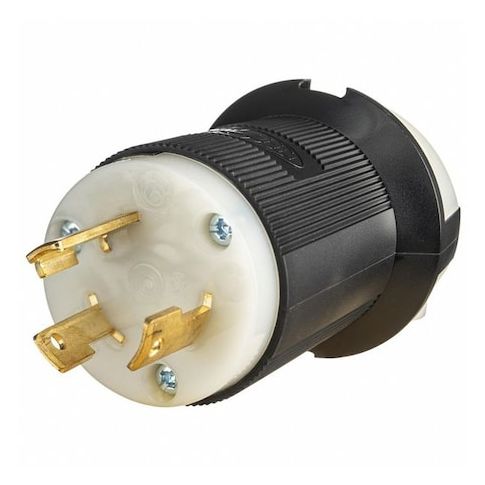

Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Spring Clamp Terminals, Black, White MPN:HBL2611ST
Free Shipping
In Stock
The HUBBELL Locking Plug is a heavy-duty electrical connector designed for industrial applications, featuring a locking mechanism and spring clamp terminals for easy wire termination. It's ideal for use in hazardous locations, outdoor environments, and areas with high vibration or movement. The plug's durable construction and reliable connections ensure safe and efficient power delivery, making it suitable for applications such as construction sites, manufacturing facilities, and data centers. Its versatility and rugged design make it a reliable choice for a wide range of industries, from electrical to manufacturing and beyond.
Top product features:
- The HUBBELL Locking Plug features spring clamp terminals to facilitate wire termination.
- The plug includes a funnel-shaped wire entry to facilitate wiring.
- The steel spring helps maintain strand tension, reducing the risk of loose connections.
Top product applications:
- Industrial Control Panels
- Heavy-duty equipment
- Manufacturing machinery
The HUBBELL Locking Plug is a heavy-duty electrical connector intended for industrial applications and features a locking mechanism. It features spring clamp terminals to facilitate wire termination and can be installed without the use of a torque wrench. The plug includes a funnel-shaped wire entry to facilitate wiring and incorporates a steel spring intended to help maintain strand tension, reducing the risk of loose connections.
Key Features of the HUBBELL Locking Plug:
- Blade Material: Copper alloy blades provide electrical contact.
- Housing Material: Nylon housing provides specified material properties as per manufacturer information.
- NEMA Configuration: L5-30P
- 2-pole, 3-wire grounded design.
- Current/Voltage Rating: Rated for 30 A at 125V AC single phase operation.
- Wire Size Compatibility: Accepts wire sizes from 14 AWG to 8 AWG.
- Cable Diameter Range: Suitable for cables between 0.36 in and 0.93 in diameter.
- Operating Temperature Range: Rated for operation within -40°C to +75°C temperature range.
- Connection Orientation & Style: Straight connection with standard wiring style using spring clamp terminals.
- Polarized & Grounded: Yes, supports installation alignment and grounding capability.
- Flammability & IP Rating: UL94 HB flammability rating
- IP20 ingress protection against solid objects larger than 12 mm.
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specifications W-C-596, Listed to UL498 standards
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 2.50
- Package Height: 2.40
- Package Weight: 0.22
