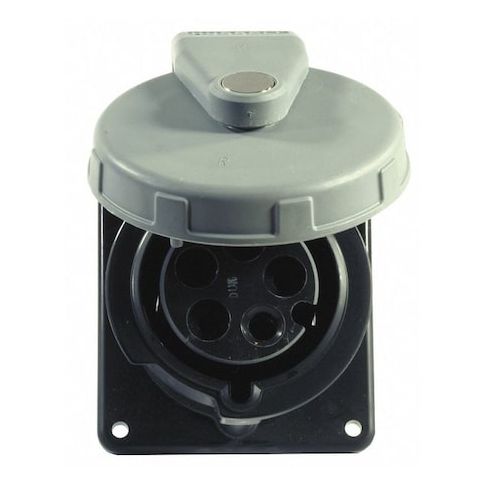

Watertight Pin & Sleeve Receptacle, 30 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black MPN:HBL530R5W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Receptacle is a reliable and durable electrical device designed for use in demanding industrial settings. Rated for 30A at 347/600V AC, this receptacle provides a secure and watertight connection for three-phase power requirements. Constructed with corrosion-resistant materials, it withstands harsh environments and maintains its integrity in extreme temperatures. Suitable for applications in manufacturing, construction, and other industries, this receptacle offers easy installation and identification, making it an ideal choice for facilities that require high-performance electrical connections. Its rugged design and IP67 rating ensure reliable operation in harsh conditions.
Top product features:
- Watertight design with IP67 rated enclosure
- Accommodates wire sizes from #12 AWG to #8 AWG
- Grounded according to IEC standards with a spring-loaded cap
Top product applications:
- Industrial Settings
- Heavy-Duty Equipment Installation
- High-Temperature Applications
The HUBBELL IEC Pin and Sleeve Receptacle, 30A, 600V is an electrical device rated for use with 30A, 600V connections in industrial settings. This receptacle features a straight connection orientation with pressure terminal screws and accommodates wire sizes from #12 AWG to #8 AWG. Constructed with Zytel 101 nylon and thermoplastic materials, it offers resistance to corrosion, impact, moisture, and UV exposure. The unit is grounded according to IEC standards and includes a spring-loaded cap.
Key Features of the HUBBELL IEC Pin & Sleeve Watertight Receptacle:
- Current/Voltage Rating: Rated for 30 A at 347/600V AC (three-phase), suitable for demanding power requirements.
- Ingress Protection: IP67 rated enclosure.
- Material Construction: Housing made from Zytel 101 nylon
- gasket constructed of neoprene
- retainer uses high-impact thermoset material.
- Cord Accommodation: Accepts cord sizes ranging from #12 AWG to #8 AWG.
- Operating Temperature Range: Rated to operate within -40°C to 75°C operating temperature range.
- Flammability Ratings: Meets UL 94 HB or better
- housing meets UL 94 V0/5VA standards.
- Mounting Type: Flanged design with screw mounting hardware included.
- Color Coding & Identification: Color coded housings aid in easy identification
- permanent product ratings on housing per North American and IEC conventions.
- Standards Compliance: Certified to CSA C22.2 No.182.1, UL E146032, IEC 60309-1/-2 standards.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 4.80
- Package Height: 6.40
- Package Weight: 1.35
