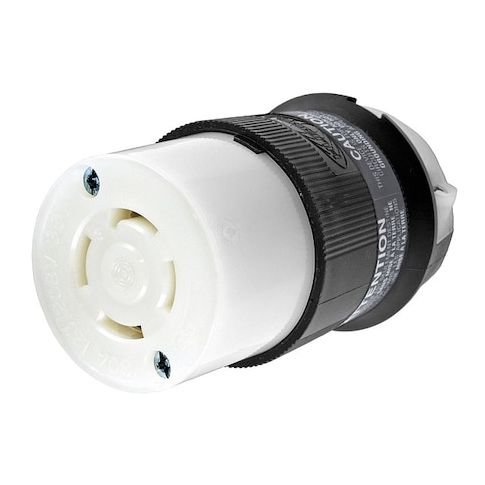

Locking Connector, Non-NEMA, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White MPN:HBL3433C
Free Shipping
In Stock
The HUBBELL 30A Twist-Lock Connector is a reliable and versatile locking connector designed for three-phase applications. Rated for 30 amps and 120/208V AC, it features a ribbed nylon housing and screw terminal connections, accommodating #16 AWG to #8 AWG stranded copper wire. Suitable for various industries, including electrical, construction, and manufacturing, this connector ensures secure and efficient connections. Its non-NEMA twist-lock design and cord grip design reduce strain on terminations, while its UL and CSA certification guarantee compliance with industry standards. Ideal for applications where reliability and safety are paramount, this connector is a valuable addition to any electrical setup.
Top product features:
- Rated for 30 A and 120/208V AC, three-phase applications
- Accepts #16 AWG to #8 AWG stranded copper wire
- Meets UL94 HB flammability rating and withstands dielectric voltage of at least 2,000V
Top product applications:
- Commercial and industrial electrical applications
- Three-phase power distribution systems
- Heavy-duty electrical equipment installations
The HUBBELL 30A Twist-Lock Connector is a locking connector with four-pole, four-wire configuration rated for 120/208V AC at 30 amps. It features a ribbed nylon housing with specified material properties per manufacturer specifications.
Key Features of the HUBBELL 30A Twist-Lock Connector:
- Amperage/Voltage Rating: Rated for 30 A and 120/208V AC, three-phase applications
- Wire Accommodation: Accepts #16 AWG to #8 AWG stranded copper wire
- screw terminal connections
- Cable Range: Compatible with cable diameters from 0.350" to 1.150"
- Housing Material: Ribbed nylon construction facilitates handling
- material properties per manufacturer specifications
- Temperature Rating: Rated operating temperature range: -40°C to +75°C (when not subject to mechanical impact)
- Flammability & Dielectric Strength: Meets UL94 HB flammability rating
- withstands dielectric voltage of at least 2,000V
- Cord Grip Design: Intended to reduce strain on terminations during installation and operation within specified parameters
- Wire Entry & Dust Shield: Funnel-shaped wire entry assists with termination
- includes integrated dust shield over wiring chamber
- NEMA Configuration: Non-NEMA twist-lock design with straight connection orientation
- Standards Compliance: Certified to UL and CSA standards
- terminals identified per UL498 requirements
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.50
- Package Height: 4.00
- Package Weight: 0.40
