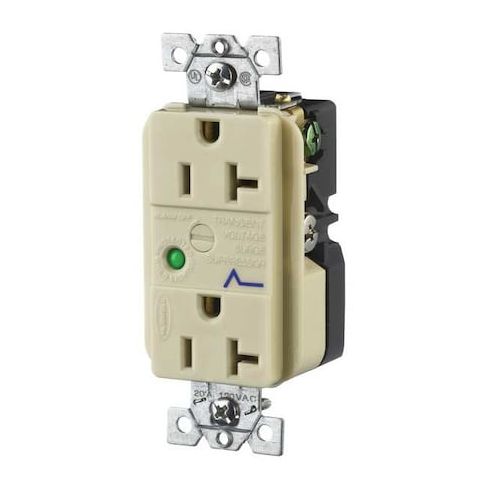

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5360ISA

• The HUBBELL 5-20R Decorator Duplex Receptacle is a flush mount, surge protection outlet rated for 20A and 125V AC. Suitable for commercial applications, this duplex receptacle features integrated MOV-based suppression

• provides surge mitigation with two internal MOVs providing protection against electrical surges. The device includes both visual (LED) and audible alarms to indicate the status of surge protection, as well as a power-on indicator light to verify power availability.




  Key Features of the HUBBELL 5-20R Decorator Duplex Receptacle:





  • Amperage/Voltage: Rated for 20A, 125V AC


  • Surge Protection: Integrated MOV-based suppression
  • provides surge mitigation


  • Indicators: LED indicator and audible alarm provide status notification of surge protection


  • Grounding: Self-grounding staple with steel grounding screw


  • NEMA Configuration: 5-20R straight blade duplex outlet


  • Material Construction: Nylon base and top
  • brass contacts
  • zinc-plated mounting hardware


  • Mount Type: Flush mount design suitable for single-gang installations


  • Circuit Connection: Side wiring using terminal screws (#8-32 brass)


  • Certifications/Standards: UL Listed (File E2186), CSA Certified C22.2 No.42, meets ANSI/IEEE C62.41 requirements
