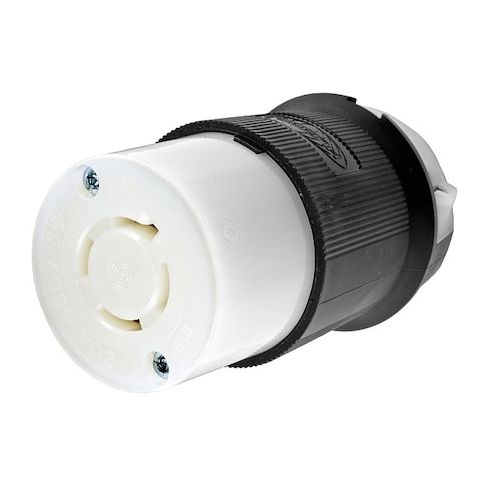

Locking Connector, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL2433

• The HUBBELL 20A Twist-Lock Connector (L16-20R) is a locking connector suitable for use in industrial and commercial electrical applications. It features a three-pole, four-wire configuration rated for 480V AC and 20 amps. The connector utilizes a natural white nylon body with black and white housing, with impact-resistant construction intended for indoor dry locations.





  Key Features of the HUBBELL 20A Twist-Lock Connector:





  • Amperage/Voltage Rating: Rated for 20 A at 480V AC, three-phase power.


  • NEMA Configuration: L16-20R twist-lock design provides a locking mechanism to help maintain connection integrity.


  • Cable Range: Accepts cord diameters from 0.350 in to 1.150 in
  • accommodates #16 AWG to #8 AWG stranded copper wire only.


  • Body Material: Constructed from impact-resistant nylon with an insulated body.


  • Wire Connection Type: Screw terminals with funnel-shaped entry
  • terminals identified per UL 498 standards.


  • Performance Ratings: Rated dielectric voltage: 2,000V minimum
  • maximum continuous operating temperature: 75°C
  • minimum operating temperature (without impact): -40°C.


  • Protection Features: Integral dust shield covers wiring chamber
  • IP20 rated for indoor use unless additional protection is provided.


  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and listed to UL 498 requirements.
