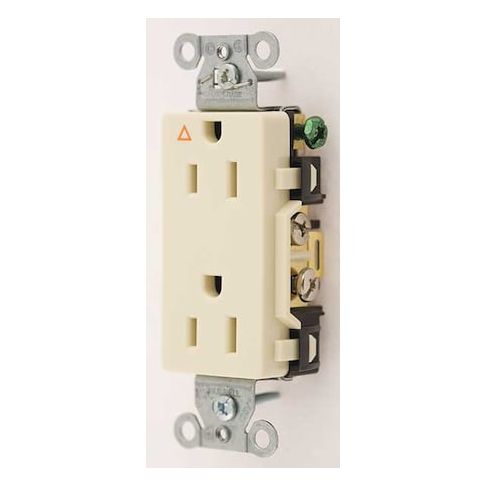

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG15DRI
Free Shipping
In Stock
The HUBBELL Decorator Duplex Receptacle is a reliable and versatile outlet suitable for a variety of applications, including residential, commercial, and industrial settings. Its isolated ground design ensures safe and secure connections, while the triple wipe brass contacts provide reliable connectivity. This receptacle is perfect for use in areas where isolated ground connections are specified, such as in bathrooms, kitchens, and outdoor spaces. With its durable construction and compliance with industry standards, this outlet is a great choice for any project, offering a safe and efficient way to power devices and appliances.
Top product features:
- Isolated Ground: Designed with insulated barriers to isolate ground contacts indicated by triangle marking on face.
- Triple wipe brass contacts for reliable connectivity.
- Flush mount installation includes mounting hardware and grounding staple.
Top product applications:
- In residential construction
- Commercial office buildings
- Hotel and motel rooms
The HUBBELL Decorator Duplex Receptacle is a 15 amp, 125V AC flush mount outlet suitable for use in applications where isolated ground connections are specified. This receptacle includes insulation barriers that separate the ground contacts from the mounting strap and conventional grounding system
- includes a green grounding screw intended for use in an isolated ground circuit. The device has a Decorator-style design and includes triple wipe brass contacts for reliable connectivity.
Key Features of the HUBBELL Decorator Duplex Receptacle:
- Isolated Ground: Designed with insulated barriers to isolate ground contacts
- indicated by triangle marking on face.
- Electrical Ratings: Rated for 15 A, 125V AC
- rated for current interrupting at its specified rating.
- NEMA Configuration: 5-15R duplex outlet suitable for standard straight blade plugs.
- Wiring Options: Back and side wired screw terminals accommodate #14–#10 AWG copper wire (stranded or solid).
- Material Construction: Nylon base and face with galvanized steel mounting strap
- brass power and ground contacts.
- Mounting Type: Flush mount installation
- includes mounting hardware and grounding staple.
- Operating Conditions: Withstands dielectric voltage of 2,000V minimum
- flammability rated UL 94 V-2
- operating temperature range -40°C to +75°C (without impact).
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 4.30
- Package Height: 2.60
- Package Weight: 1.90
