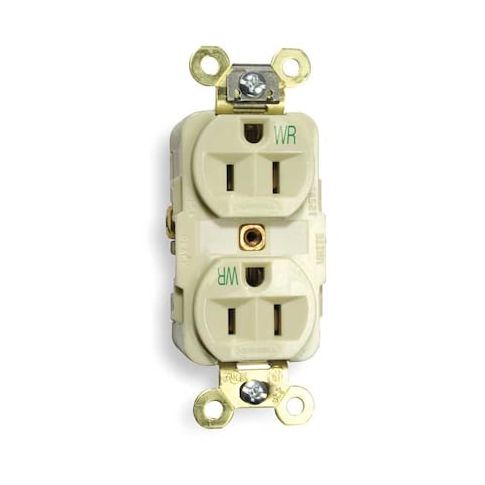

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5262IWR
Free Shipping
In Stock
The HUBBELL 15A Duplex Receptacle is a heavy-duty outlet designed for industrial environments, suitable for applications that require a high level of reliability and safety. Its weather-resistant construction and flush mount design make it ideal for standard installations, while its back and side wiring options accommodate a range of copper conductor sizes. Rated for 15 amps and 125 volts, this receptacle is perfect for use in areas with high electrical demands, such as manufacturing facilities, warehouses, and commercial kitchens. Its certifications and standards compliance ensure that it meets the highest industry standards for safety and performance.
Top product features:
- Rated at 15 A, 125 VAC
- Weather-resistant construction for industrial environments
- Back and side wiring options with screw terminals support #14–#10 AWG copper wire
Top product applications:
- Heavy-duty commercial applications
- Industrial environments with exposure to environmental factors
- Standard residential installations
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a traditional duplex outlet suitable for heavy-duty applications. Rated for 15 amps and 125 volts, this receptacle includes weather-resistant construction appropriate for industrial environments. It includes both back and side wiring options to accommodate #14–#10 AWG copper conductors, with a flush mount design for standard installations.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Amperage/Voltage: Rated at 15 A, 125 VAC
- NEMA Configuration: 5-15R (2-pole, 3-wire grounding)
- Weather Resistant: Constructed with materials rated for exposure to environmental factors
- Material Construction: Nylon face/top with reinforced PET base
- nickel-plated brass contacts
- Wiring Method: Back and side wired screw terminals support #14–#10 AWG copper wire
- Mounting Type: Flush mount with included mounting hardware
- Face Style: Finder Groove face aids in installation identification
- Circuit Identification Face: Deep body design allows circuit labeling on device face
- Certifications/Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification WC596G, NEMA WD-6 compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.70
- Package Height: 4.30
- Package Weight: 0.26
