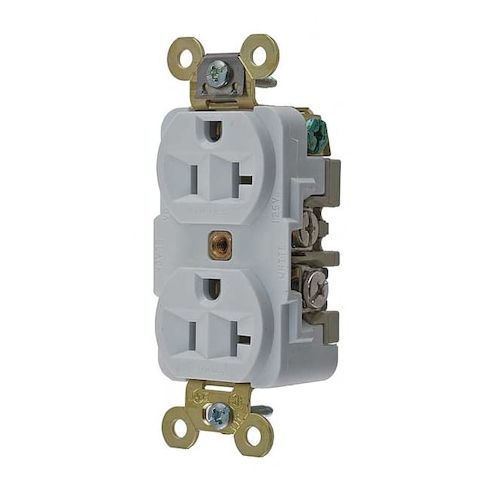

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5362W
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is a reliable and versatile electrical outlet suitable for various applications, including industrial environments. This specification-grade receptacle features a standard NEMA 5-20R configuration, supporting both back and side wiring methods, and accommodates #14 to #10 AWG copper wire. With its flush mount design and grounding provisions, it provides safe and efficient power distribution. Suitable for indoor dry locations, this receptacle is an ideal choice for commercial and industrial settings, offering reliable operation and long-lasting performance in a range of applications, from offices to manufacturing facilities.
Top product features:
- Supports both back and side wiring methods
- Accommodates #14 to #10 AWG copper wire
- Includes grounding provisions with a one-piece brass integral ground strap
Top product applications:
- Industrial environments
- Specification grade applications
- Indoor dry locations
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is a traditional duplex electrical outlet suitable for specification grade applications. This receptacle features a standard NEMA 5-20R configuration, supports both back and side wiring methods, and accommodates #14 to #10 AWG copper wire. It is rated for 20 amps at 125 volts AC and includes grounding provisions with a one-piece brass integral ground strap. The device is suitable for indoor dry locations, including industrial environments.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Amperage/Voltage Rating: Rated for 20 A, 125 VAC operation
- NEMA Configuration: Standard NEMA 5-20R duplex outlet
- Wiring Method: Back and side wired screw terminals support #14–#10 AWG copper conductors
- Material Construction: Nylon face with reinforced PET base
- nickel-plated brass contacts
- Mounting Type: Flush mount design with included mounting hardware
- Grounding: Grounded with stainless steel auto ground clip and one-piece brass ground strap
- Operating Temperature Range: -40°C to +75°C (without impact)
- Certification & Standards Compliance: UL Listed to UL498, CSA C22.2 No.42 certified, Federal Specification W-C-596 compliant, NEMA WD-6 compliant
- Dielectric Strength & Flammability Ratings: Withstands minimum dielectric voltage of 2,000V
- top flammability rating UL94V-2/base UL94V-0 or better
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.50
- Package Height: 4.50
- Package Weight: 0.27
