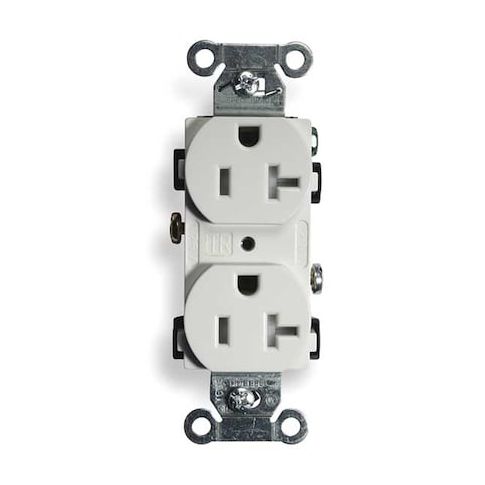

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:BR20WHITR
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle is a reliable and durable electrical outlet designed for indoor use. With its tamper-resistant design and smooth nylon face, it provides a safe and secure connection for your devices. Suitable for single-gang installations, this receptacle is perfect for residential and commercial applications, including offices, homes, and public spaces. Its 20A, 125V AC rating and NEMA 5-20R configuration make it a versatile and reliable choice for a wide range of electrical needs. With its flush mount design and grounding staple, this receptacle is easy to install and provides a long-lasting solution for your electrical requirements.
Top product features:
- Tamper Resistant: Internal shutters are present to reduce the likelihood of foreign object insertion.
- Electrical Rating: Rated for 20A, 125V AC
- Supports both back and side wiring methods with screw terminals, accommodating #12–#10 AWG copper conductors.
Top product applications:
- Home renovations and construction projects
- Office and commercial building electrical installations
- Residential electrical upgrades and repairs
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is a tamper-resistant electrical outlet intended for indoor use. This duplex receptacle features a smooth nylon face and wrap-around galvanized steel straps for durability. It is rated for 20 amps at 125 volts AC and supports both back and side wiring methods with screw terminals, accommodating #12–#10 AWG copper conductors.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Tamper Resistant: Internal shutters are present to reduce the likelihood of foreign object insertion.
- Electrical Rating: Rated for 20A, 125V AC
- NEMA configuration 5-20R.
- Material Construction: Nylon housing and face with brass power contacts
- galvanized steel mounting strap.
- Mounting Type: Flush mount design suitable for single-gang installations
- includes grounding staple and mounting hardware.
- Wiring Method: Supports both back and side wire connections using screw terminals (#12–#10 AWG copper only).
- Certification & Standards: UL Listed to UL498, CSA Certified C22.2 No.42, meets Federal Specification WC596G, NEMA WD-6 compliant.
- Operating Temperature Range: -40°F to +167°F (maximum continuous temperature rise of up to 75°C).
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.40
- Package Width: 4.40
- Package Height: 2.50
- Package Weight: 1.85
