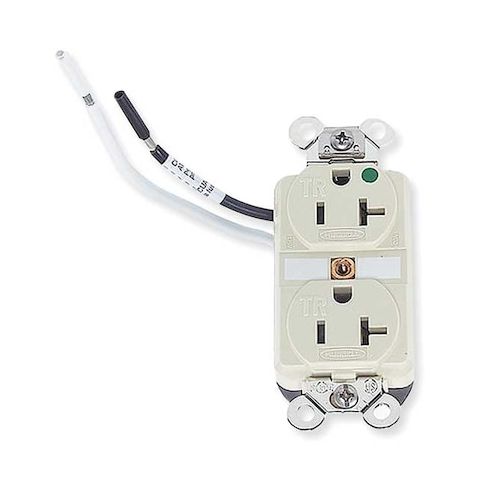

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8300SGIA
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a versatile and reliable electrical solution suitable for demanding applications in indoor settings. This tamper-resistant, hospital-grade receptacle features a grounded, four-point grounding system and nickel-plated brass contacts for high durability and reliable electrical performance. With its UL 94V-0 and UL 94-5 VA rated thermoplastic housing, it withstands a minimum of 2,000V dielectric voltage. Ideal for use in commercial and industrial settings, such as offices, hospitals, and laboratories, this receptacle is designed for applications where high reliability and safety are paramount.
Top product features:
- Rated for 20 A at 125 VAC
- Meets hospital grade requirements
- Accommodates #12–#10 AWG copper wire
Top product applications:
- Office Spaces
- High-End Residential Buildings
- Commercial Kitchens
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a traditional duplex, hospital grade receptacle suitable for demanding applications. It features a grounded, tamper-resistant design with nickel-plated brass contacts and thermoplastic housing. This device is suitable for indoor applications where high durability and reliable electrical performance are required.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Amperage/Voltage: Rated for 20 A at 125 VAC
- NEMA Configuration: 5-20R, duplex outlet type
- Hospital Grade: Meets hospital grade requirements
- Tamper Resistant: Tamper-resistant design
- Grounding: Four-point grounding system
- accommodates #12–#10 AWG copper wire
- Contact Material: Nickel-plated brass contacts
- Wire Connection Type: Wire leads for fast installation
- screw terminals also available (back or side wiring)
- Flammability Rating: UL 94V-0 and UL 94-5 VA rated thermoplastic housing
- Dielectric Strength: Withstands minimum of 2,000V dielectric voltage
- Certain Standards Met: CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 1.90
- Package Height: 4.20
- Package Weight: 0.20
