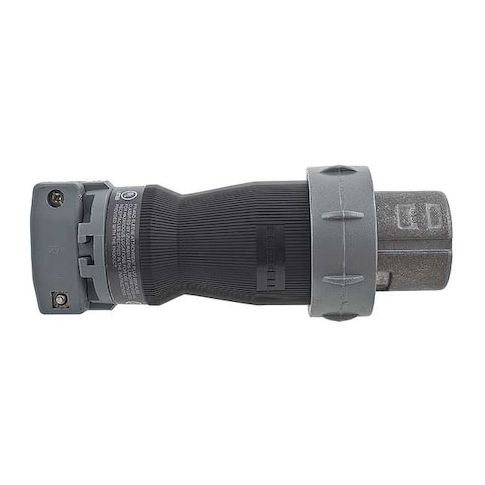

Pin & Sleeve Plug, 100 A, 600V AC, Three Phase, 4 Pole, Style 1 Grounding, Gray, NEMA Not Rated MPN:HBL5100PS1W

• The HUBBELL Pin and Sleeve Plug is a 100A, 600VAC/250VDC-rated electrical connector suitable for industrial applications. Featuring a combination of metallic shrouding and a non-metallic Valox 357 housing with an aluminum shroud, this plug is rated as watertight (UL Type 4X). It is compatible with the Insulgrip series and supports three-phase power connections using four poles and five wires.





  Key Features of the HUBBELL Pin & Sleeve Plug:





  • Current/Voltage Rating: Rated for 100A at 600VAC or 250VDC


  • Body Material: Constructed from Valox 357 housing with an aluminum shroud


  • Environmental Resistance: Rated UL Type 4X dust-tight/watertight
  • tested for impact resistance


  • Cable Compatibility: Accepts #4 AWG to #2 AWG wire sizes
  • cable diameter range from 0.925 in to 1.94 in


  • Connection Type: Connection using pressure terminal screws


  • Grounding Style: Grounding configuration: Style 1


  • Certifications: CSA Certified (C22.2 No.159), UL Listed (Type 4X), meets UL Standards (1682, UL50, UL1010)


  • Sleeve Contacts: All-brass sleeve contacts provide reliable electrical connection


  • Operating Temperature Range: -40°C to +75°C continuous operation without impact (-25°C with impact)


  • Permanently Marked Ratings: Catalog number and rating are visible while in use on device housing
