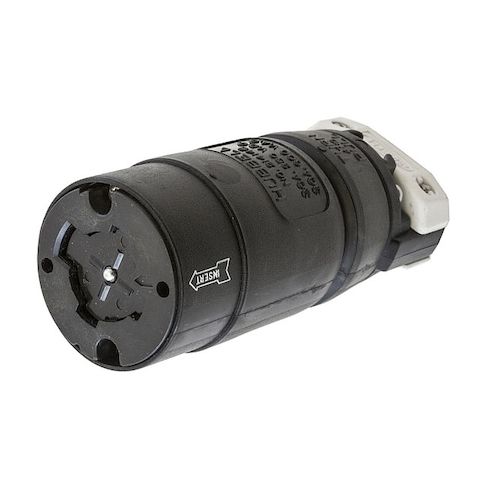

Locking Connector, Non-NEMA, 20/30 A, 250/600V AC, Three Phase, 3 Pole, Screw Terminals MPN:HBL21414B
Free Shipping
In Stock
The HUBBELL 30/20A Locking Connector is a rugged and reliable industrial connector designed for use in demanding environments and applications. Rated for 20/30 amps at up to 600VAC or 250VDC, this three-pole, four-wire connector features an insulated interior and screw terminals for secure wire connection. Its impact-resistant nylon body and bronze contacts ensure durability and resistance to damage. Ideal for use in industrial settings, the HUBBELL 30/20A Locking Connector provides safe and reliable connections for applications such as power distribution, control systems, and electrical panels, offering a reliable solution for industries including manufacturing, construction, and oil and gas.
Top product features:
- Three-pole, four-wire configuration
- Impact-resistant nylon body with insulated interior
- Spring-loaded safety shutter for added protection
Top product applications:
- Industrial Control Panels
- Process Control and Instrumentation
- Electrical Distribution and Power Systems
The HUBBELL 30/20A Locking Connector is an industrial connector rated for use in specified environments and applications. It features a three-pole, four-wire configuration and is rated for up to 600VAC or 250VDC with a current rating of 20/30 amps. The connector body is constructed from impact-resistant nylon and includes an insulated interior, providing durability under tough conditions. This device uses screw terminals for wire connection and accommodates stranded copper wire sizes from #10 AWG to #6 AWG.
Key Features of the HUBBELL 30/20A Locking Connector:
- Amperage & Voltage Rating: Rated for 20/30 A at up to 600VAC or 250VDC
- Configuration: Three poles, four wires
- grounded design
- Cable Range: Accepts cables with diameters between 0.70" and 1.20"
- Body Material: Impact-resistant black Rynite (nylon) housing
- Contact Material: Bronze contacts molded into the nose for damage resistance
- Cord Mounting: Cord-mounted hardware suitable for standard wiring styles
- Strain Relief & Protection: Three-piece clamp assembly with IP30 rating for dust/moisture ingress protection
- Safety Feature: Spring-loaded safety shutter is present
- see manufacturer specifications for operational details.
- Wire Accommodation: For stranded copper wire only (#10–#6 AWG)
- Temperature Range: Rated operating temperature range: -40°C to +75°C
- Flame Resistance & Standards Compliance: UL94 V-0 flammability rating
- certified to CSA C22.2 No.42 and listed to UL498 standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 2.80
- Package Height: 9.00
- Package Weight: 1.00
