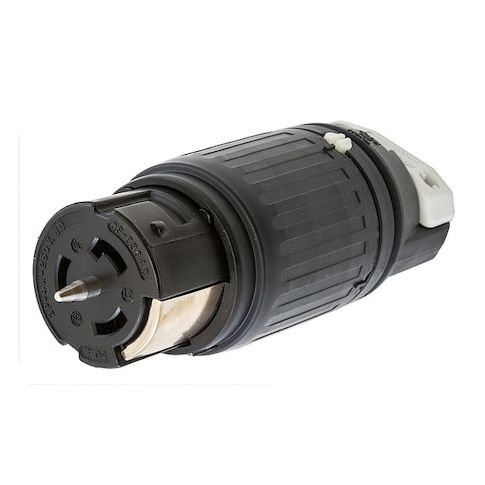

Locking Connector, Non-NEMA, 50 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White MPN:CS8364C
Free Shipping
In Stock
The HUBBELL 50A Twist-Lock Connector is a reliable and versatile locking connector designed for use in industrial and commercial electrical applications. Suitable for indoor dry locations, it features a nylon housing and insulated body, accommodating three poles and four wires, and operating at 250V AC. Its robust construction and screw terminals support wire sizes from #10 AWG to #6 AWG stranded copper wire, making it an ideal choice for applications such as power distribution, control panels, and machinery. With its high amperage rating and flame resistance, this connector provides a safe and reliable connection in a variety of settings.
Top product features:
- Accommodates three poles and four wires, allowing for a three-phase connection.
- Operates at 250V AC, suitable for high-voltage applications.
- Accepts cable diameters from 0.830 in to 1.250 in, providing flexibility in cable selection.
Top product applications:
- Industrial electrical applications
- Commercial electrical applications
- Outdoor electrical installations in dry locations
The HUBBELL 50A Twist-Lock Connector is a locking connector suitable for use in industrial and commercial electrical applications. It features a nylon housing and an insulated body, for use in indoor dry locations
- see specifications for environmental suitability. This connector accommodates three poles and four wires, operates at 250V AC, and supports wire sizes from #10 AWG to #6 AWG stranded copper wire.
Key Features of the HUBBELL 50A Twist-Lock Connector:
- Amperage/Voltage Rating: Rated for 50 A at 250V AC
- Poles/Wires: Three-pole, four-wire configuration with grounding
- Cable Range: Accepts cable diameters from 0.830 in to 1.250 in
- Body Material: Constructed with black nylon housing
- Contact Material: Brass contacts used as specified by manufacturer
- Cord Clamp: Two-piece external cord clamp included
- Wire Connection Type: Screw terminals accommodate #10 AWG to #6 AWG stranded copper wire only
- Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use
- Flame Resistance: Meets UL 94 HB or better flammability rating requirements for connectors
- interior is thermoplastic polyester for heat resistance
- Standards Compliance: Certified to CSA C22.2 No.42
- Listed to UL 498 standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.70
- Package Height: 7.30
- Package Weight: 1.00
