Watertight Pin & Sleeve Receptacle, 100 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red MPN:HBL5100R7W
Free Shipping
In Stock

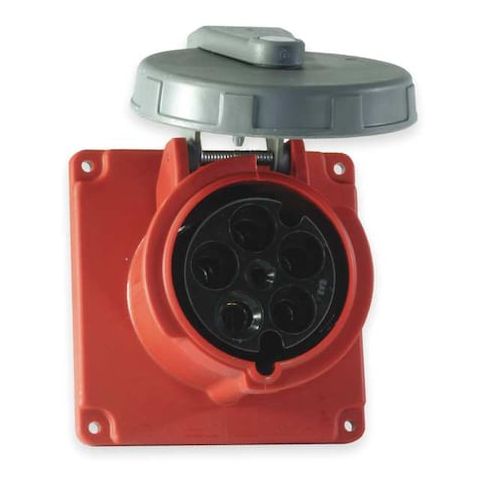

The HUBBELL IEC Pin and Sleeve Receptacle is a rugged and reliable electrical device designed for use in harsh industrial environments. Rated for 100A and 277/480V AC, it provides a watertight connection for three-phase power, making it ideal for applications such as manufacturing, construction, and oil and gas facilities. The receptacle's self-closing gasketed cover and color-coded red housing ensure secure and easy identification, while its IP67 ingress protection rating and operating temperature range of -40°C to +75°C provide added durability and flexibility. Its CSA and UL certifications ensure compliance with industry standards.
Top product features:
- Watertight construction with IP67 ingress protection
- Accepts cord sizes from #3 AWG to #1/0 AWG for flexible cord management
- Four poles/five wires (3Y phase) circuit configuration for reliable three-phase power delivery
Top product applications:
- Industrial Settings
- Heavy-Duty Equipment Installation
- Outdoor Electrical Enclosures
The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device rated for 100A and 277/480V AC, suitable for use in industrial environments. Rated for 100A and 277/480V AC, this receptacle features a rugged thermoplastic housing made from Zytel 101 nylon, constructing with materials specified as Zytel 101 nylon. The unit includes a self-closing gasketed cover and color-coded red housing for identification. It supports straight connection orientation with screw terminal pressure connectivity suitable for wire sizes ranging from #3 AWG to 1/0 AWG.
Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:
- Current Rating: Rated for up to 100 amps at 277/480V AC three-phase power
- Watertight Construction: IP67 ingress protection
- includes neoprene gasket material
- Material: Housing, body, flange made from Zytel 101 nylon
- retainer is high-impact thermoset
- Cord Accommodation: Accepts cord sizes from #3 AWG to #1/0 AWG
- Connection Type: Pressure terminal screws with grounded IEC configuration
- Operating Temperature Range: -40°C to +75°C continuous operation
- Flammability Ratings: UL 94 HB or better
- meets UL1682 standards
- Resistance Properties: Constructed from Zytel 101 nylon and high-impact thermoset materials
- Circuit Configuration: Four poles/five wires (3Y phase)
- NEMA Enclosure Rating: Not rated
- conforms to relevant CSA and UL standards including CSA C22.2 No.182.1 & UL1682
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 6.40
- Package Height: 5.90
- Package Weight: 4.05
