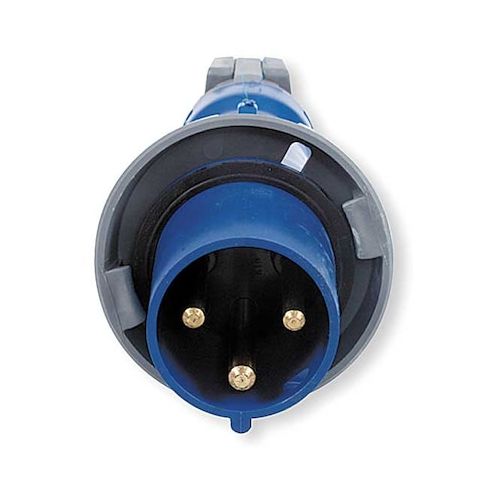

Watertight Pin & Sleeve Plug, 60 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue MPN:HBL360P6W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Plug is a rugged and reliable watertight electrical connector designed for harsh environments. Rated for 60 amps at 250V AC, it provides a secure connection for single-phase power with two poles and three wires. Its non-metallic Zytel 801 nylon housing and gasketed sealing ring ensure moisture and impact resistance, making it ideal for outdoor or industrial applications. Suitable for use in construction, manufacturing, and other industries, this plug offers added protection with its IEC grounding configuration and shrouded contacts, providing peace of mind in high-risk environments.
Top product features:
- Current/Voltage Rating: Rated for 60 amps at 250V AC, single phase
- Watertight Construction: Gasketed sealing ring
- Grounding Style: IEC grounding configuration with shrouded contacts for added protection
Top product applications:
- Marine and Offshore Applications
- Industrial and Manufacturing Environments
- Outdoor and Weather-Resistant Installations
The HUBBELL IEC Pin and Sleeve Plug is a watertight electrical connector rated for operation up to 60A at 250V AC. This plug features a rugged, non-metallic Zytel 801 nylon housing and is intended for environments requiring moisture and impact resistance, as specified by product ratings. It accommodates single-phase power with two poles and three wires, using screw terminals provide a means of connecting wires for secure connection.
Key Features of the HUBBELL IEC Pin and Sleeve Plug:
- Current/Voltage Rating: Rated for 60 amps at 250V AC, single phase
- Watertight Construction: Gasketed sealing ring
- IP67 ingress protection rating
- Material: Non-metallic Zytel 801 nylon body
- rated for impact resistance per applicable standards
- Cord Compatibility: Accepts cable diameters from 0.83 in to 1.45 in
- cord mounted design
- Wire Size Range: Supports #8 AWG to #2 AWG conductors via pressure terminal screws
- Operating Temperature Range: -40°C to +75°C (continuous)
- Standards Compliance: Meets CSA Standard C22.2 No.182.1, UL Classified to IEC60309-1, UL Listed (File E146032)
- Grounding Style: IEC grounding configuration with shrouded contacts for added protection
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 4.60
- Package Height: 11.10
- Package Weight: 2.23
