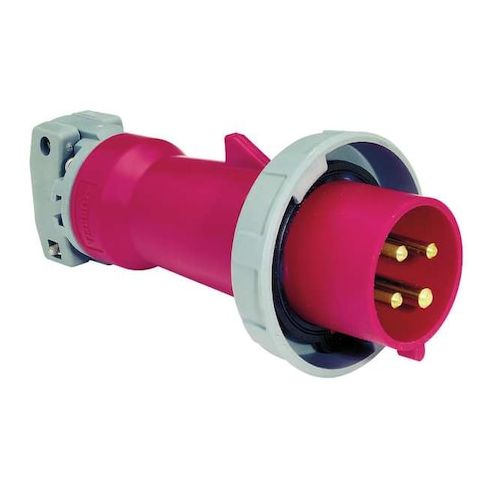

Watertight Pin & Sleeve Plug, 100 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red, NEMA 4X MPN:HBL4100P7W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Plug is a reliable and durable solution for industrial and commercial environments. Rated for 100A and 480V AC, this three-phase, four-wire plug is designed for use in applications such as manufacturing, construction, and outdoor equipment. The watertight design and gasketed sealing ring ensure IP67 protection, while the non-metallic housing and solid one-piece pins provide reliable contact and strain relief. Suitable for NEMA Type 4X applications, this plug meets multiple standards and is perfect for use in harsh environments, providing a safe and efficient connection for your equipment.
Top product features:
- Watertight integrity is maintained through a gasketed sealing ring rated IP67.
- The device includes solid one-piece pins for reliable contact.
- It accepts wire sizes from 3 AWG to 1/0 AWG, with a cable diameter up to 1.065 in.
Top product applications:
- Industrial Settings
- Commercial Environments
- Heavy-Duty Equipment
The HUBBELL IEC Pin and Sleeve Plug is a suitable for industrial and commercial environments. Rated for 100A and 480V AC, this three-phase, four-wire plug includes a non-metallic housing made from Zytel 801 nylon. The device includes solid one-piece pins for reliable contact, a gasketed sealing ring
- rated IP67, to maintain watertight integrity, and external cord grips for strain relief. It meets multiple standards including UL IEC 60309-1, CSA Certified C22.2 No. 182.1, and carries an IP67/NEMA 4X rating.
Key Features of the HUBBELL IEC Pin & Sleeve Plug:
- Current/Voltage Rating: Rated for 100A at 480V AC (three-phase)
- Body Material: Constructed from impact-resistant Zytel 801 nylon
- Watertight Design: Gasketed sealing ring
- rated IP67
- NEMA Enclosure Rating: Suitable for NEMA Type 4X applications
- Cable Accommodation: Accepts wire sizes from 3 AWG to 1/0 AWG
- cable diameter up to 1.065 in
- Operating Temperature Range: -40°C to +75°C
- Wire Connection Type: Screw terminals with straight connection orientation
- Pole/Wire Configuration: Three poles, four wires
- grounded per IEC style
- Standards Compliance: UL E146032 listed
- CSA Certified C22.2 No.182.1
- UL IEC 60309-1 compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 6.20
- Package Height: 5.40
- Package Weight: 2.82
