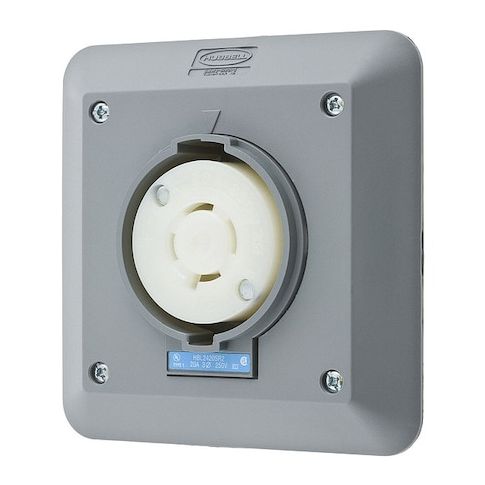

Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, Gray MPN:HBL2420SR2

• The HUBBELL 20A Twist-Lock Receptacle L15-20R is a locking receptacle with twist-lock mechanism for electrical connections. Featuring a twist-lock mechanism and polarized design, this three-pole, four-wire device supports up to 250V AC and 20 amps. Its thermoplastic housing with impact- and corrosion-resistant properties provides durability in demanding environments.





  Key Features of the HUBBELL 20A Twist-Lock Receptacle L15-20R:





  • Lock Type: Twist-lock mechanism with alignment arrows and lock/unlock symbols for visual connection confirmation


  • Material: Engineered thermoplastic (Valox) housing
  • brass contacts
  • corrosion-resistant construction


  • Electrical Ratings: Rated for 20 A, 250V AC, three-phase operation


  • NEMA Configuration: L15-20R with grounded design


  • Wire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals


  • Mounting Type: Semi flush mount
  • shrouded design
  • non-flanged flange type


  • Temperature Range: Operates from -40°F to 167°F (maximum continuous temperature rise of 30°C at full rated current)


  • Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498 listed


  • NEMA Enclosure Rating/IP Rating: NEMA Type 1 / IP20—intended for indoor use only
