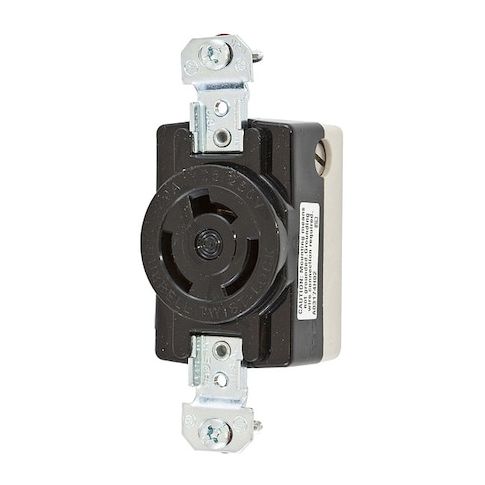

Locking Receptacle, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals MPN:HBL7310B
Free Shipping
In Stock
The HUBBELL 20A Twist-Lock Receptacle is a heavy-duty industrial locking receptacle designed for indoor use in dry locations. Its twist-lock mechanism ensures secure connections, while its 3-pole, 3-wire configuration supports 125/250V AC at 20 amps. Constructed with impact-resistant nylon and corrosion-resistant brass contacts, this receptacle is built to withstand harsh environments. Suitable for applications such as manufacturing, warehousing, and commercial construction, it provides reliable power distribution and meets standards for safety and performance. Its flush mount installation makes it easy to integrate into existing electrical systems, offering a convenient and secure solution for industrial electrical connections.
Top product features:
- Twist-lock mechanism for secure electrical connections
- Supports voltages of 125/250V AC at a current rating of 20 amps
- Accommodates #16 AWG to #8 AWG solid or stranded copper wire via screw terminals
Top product applications:
- Industrial Settings
- Commercial Construction Sites
- Heavy-Duty Manufacturing Facilities
The HUBBELL 20A Twist-Lock Receptacle is an industrial locking receptacle intended for use with electrical connections in indoor, dry locations. It features a twist-lock mechanism with a 3-pole, 3-wire configuration and supports voltages of 125/250V AC at a current rating of 20 amps. The device has an impact-resistant nylon face and base material made from black thermoset, constructed with materials selected for durability.
Key Features of the HUBBELL - 20A Twist-Lock Receptacle:
- Amperage/Voltage: Rated for 20 A and compatible with both 125V and 250V AC circuits.
- Configuration: Non-NEMA, single-phase, polarized design with three poles and three wires.
- Material Construction: Impact-resistant nylon housing
- brass contacts
- corrosion-resistant all-brass mounting system.
- Wiring Compatibility: Accommodates #16 AWG to #8 AWG solid or stranded copper wire via screw terminals
- suitable for both back and side wiring.
- Mounting Type: Flush mount installation using included screw hardware.
- Operating Temperature Range: Maximum continuous operation at 75°C (167°F), minimum -40°C without impact.
- NEMA Enclosure/IP Rating: NEMA Type 1 enclosure
- IP20 rated for indoor use unless further protected.
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL Listed to UL498 standards.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.70
- Package Height: 4.20
- Package Weight: 0.20
