Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG8200

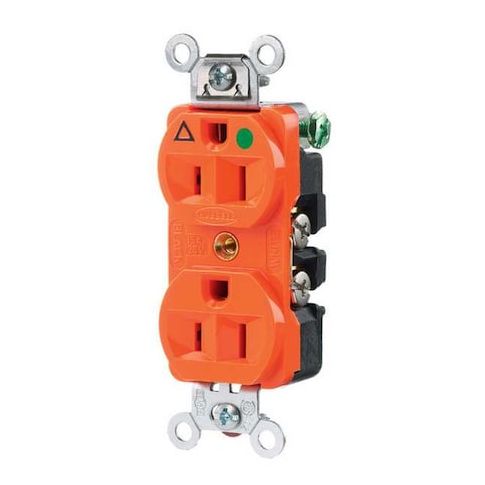

• The HUBBELL 15A Duplex Receptacle 125VAC 5-15R OR is a traditional duplex isolated ground receptacle suitable for use in applications requiring extra heavy duty and hospital grade receptacles. It features an orange thermoplastic housing and is intended for indoor installations where an isolated ground is specified. The device supports both back and side wiring with screw terminals, accommodating #14 to #10 AWG copper wire.





  Key Features of the HUBBELL 15A Duplex Receptacle:





  • Isolated Ground: Features insulation barrier construction that separates ground contacts from the mounting strap
  • Triangle marking on face denotes isolated ground.


  • Electrical Ratings: Rated for 15 A, 125 V AC
  • NEMA configuration 5-15R
  • maximum horsepower rating of 1/2 hp.


  • Hospital Grade: Construction complies with Federal Specification W-C-596 and UL498 requirements.


  • Nylon body with finder groove face


  • Wiring Options: Back and side wired screw terminals accept stranded or solid copper wire (#14–#10 AWG).


  • Dielectric Strength & Flammability: Withstands minimum dielectric voltage of 2,000V
  • flammability rated UL94V-2.


  • Mounting Hardware Included: Comes with grounding staple, mounting hardware, wall plate or weatherproof cover as specified by application needs.


  • Certifications & Standards: CSA Certified C22.2 No.42 File 285
  • NEMA WD-6 compliant
  • UL Listed (File E2186).
