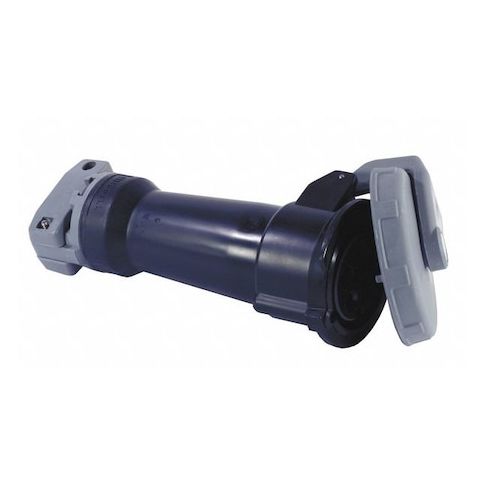

Watertight Pin & Sleeve Connector, 30 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black MPN:HBL530C5W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Connector is a rugged, watertight solution for high-ampacity connections in industrial settings. Rated for 30A and 600V AC, it features a durable, insulated non-metallic housing resistant to corrosion, impact, and moisture. Ideal for applications such as outdoor equipment, construction sites, and harsh environments, this connector ensures secure connectivity and reliable performance. Its IEC grounding style and spring-loaded cap provide added safety and convenience. With its wide range of conductor sizes and cable diameters, this connector is a versatile solution for a variety of industrial applications.
Top product features:
- Accommodates #12 AWG to #8 AWG conductors with pressure terminal screws for secure connectivity.
- Features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, providing resistance to corrosion, impact, and moisture.
- Rated IP68/IP69K per IEC 60309-1, providing environmental protection against water and dust.
Top product applications:
- Industrial Settings
- High-Ampacity Connections
- Heavy-Duty Equipment
The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated as watertight per IEC 60309-1 designed for high ampacity connections in industrial settings. Rated for 30A and up to 600V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, providing resistance to corrosion, impact, and moisture. It accommodates #12 AWG to #8 AWG conductors with pressure terminal screws for secure connectivity. The unit is grounded with an IEC grounding style and includes a spring-loaded cap.
Key Features of the HUBBELL IEC Pin & Sleeve Connector:
- Current/Voltage Rating: 30A, 347/600V AC
- Number of Poles/Wires: 4 poles / 5 wires (grounded)
- Cable Range: Accepts cable diameters from 0.5 in to 1.45 in
- conductor range #12 AWG–#8 AWG
- Housing Material: Zytel 801 nylon body with PBT housing
- insulated non-metallic construction
- Environmental Protection: Rated IP68/IP69K per IEC 60309-1
- Temperature Range: -40°C (without impact) to +75°C
- Cord Mounting: External cord grip
- Features: Color-coded housings for identification
- self-closing gasketed cover
- shrouded contacts
- Standards Compliance: CSA Certified LR280C, UL Classified to IEC 60309-1/-2, UL E146033
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 112 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.30
- Package Width: 5.20
- Package Height: 4.70
- Package Weight: 2.10
